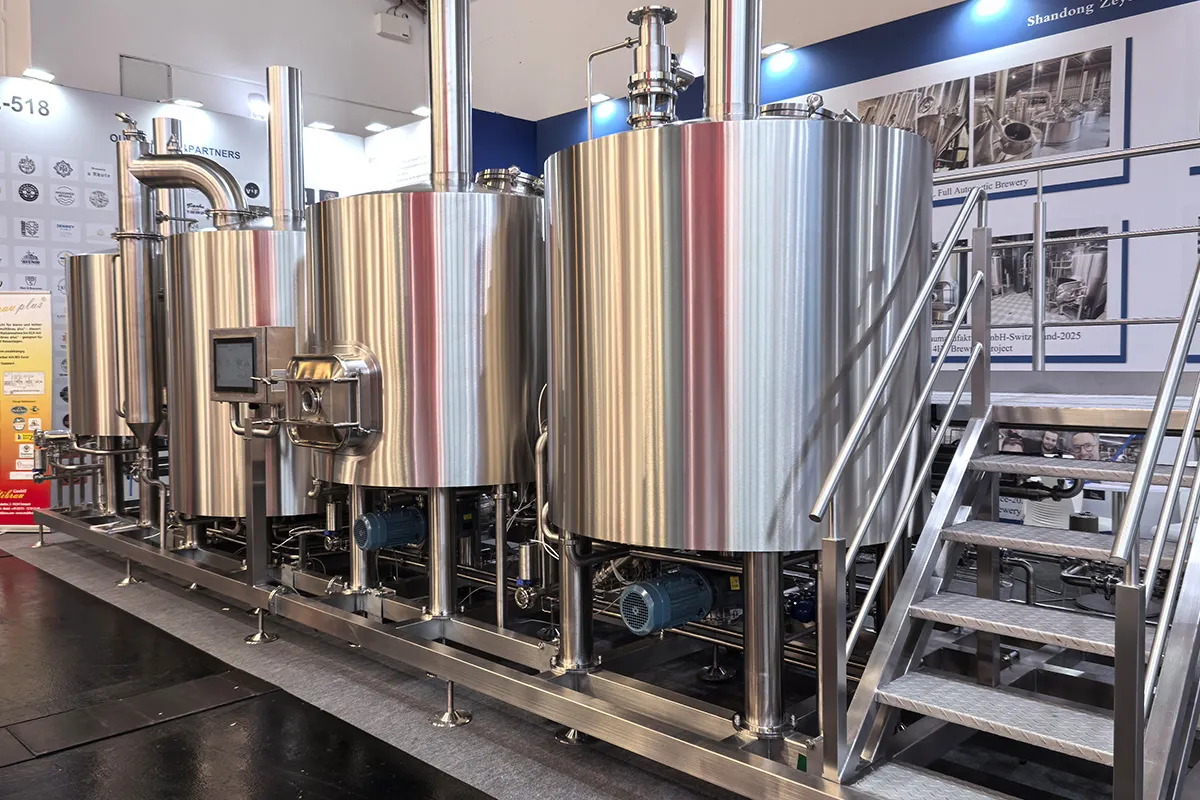

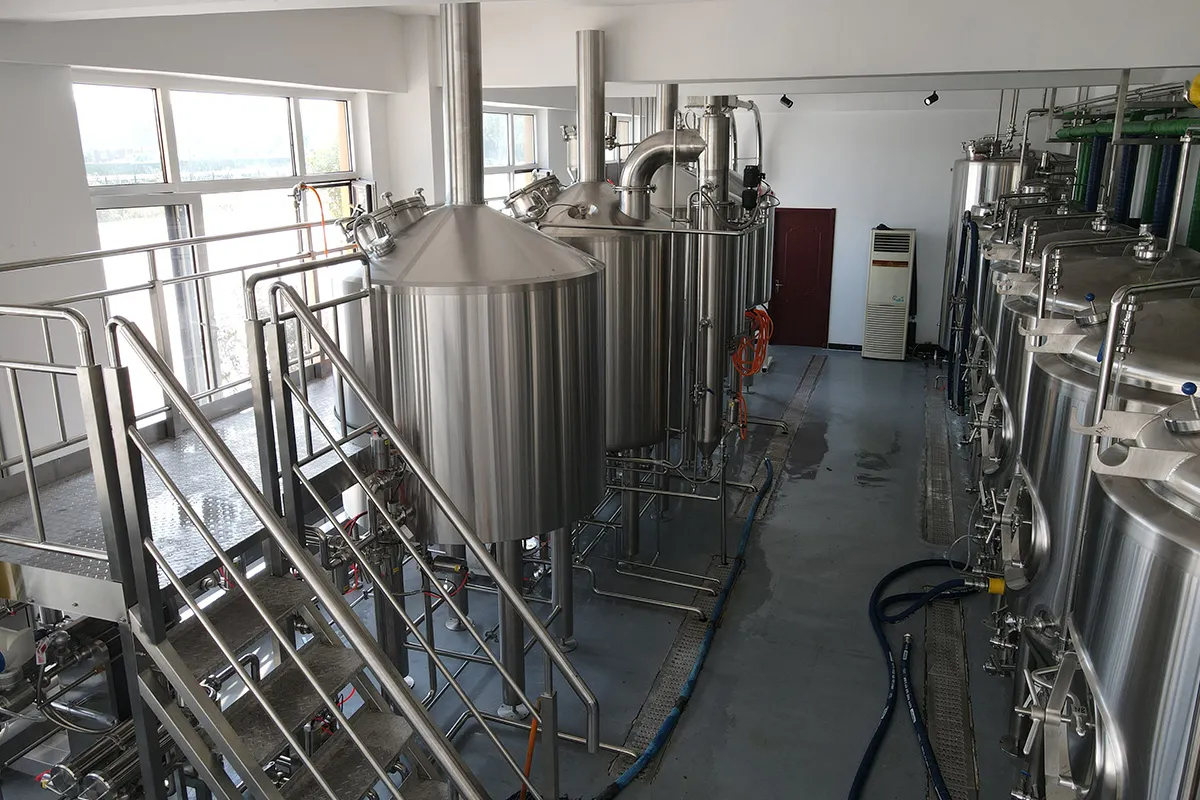

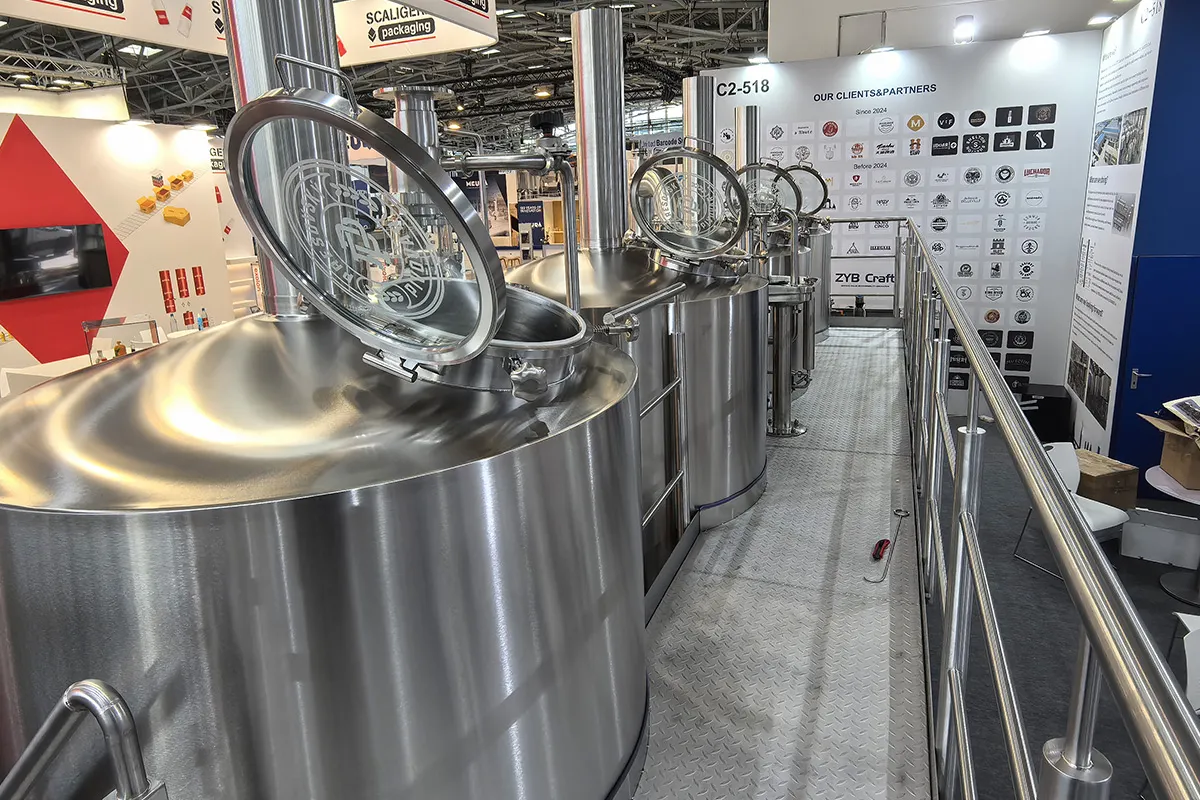

1000L Four Vessel Brewhouse
Capacity：10HL/Brew

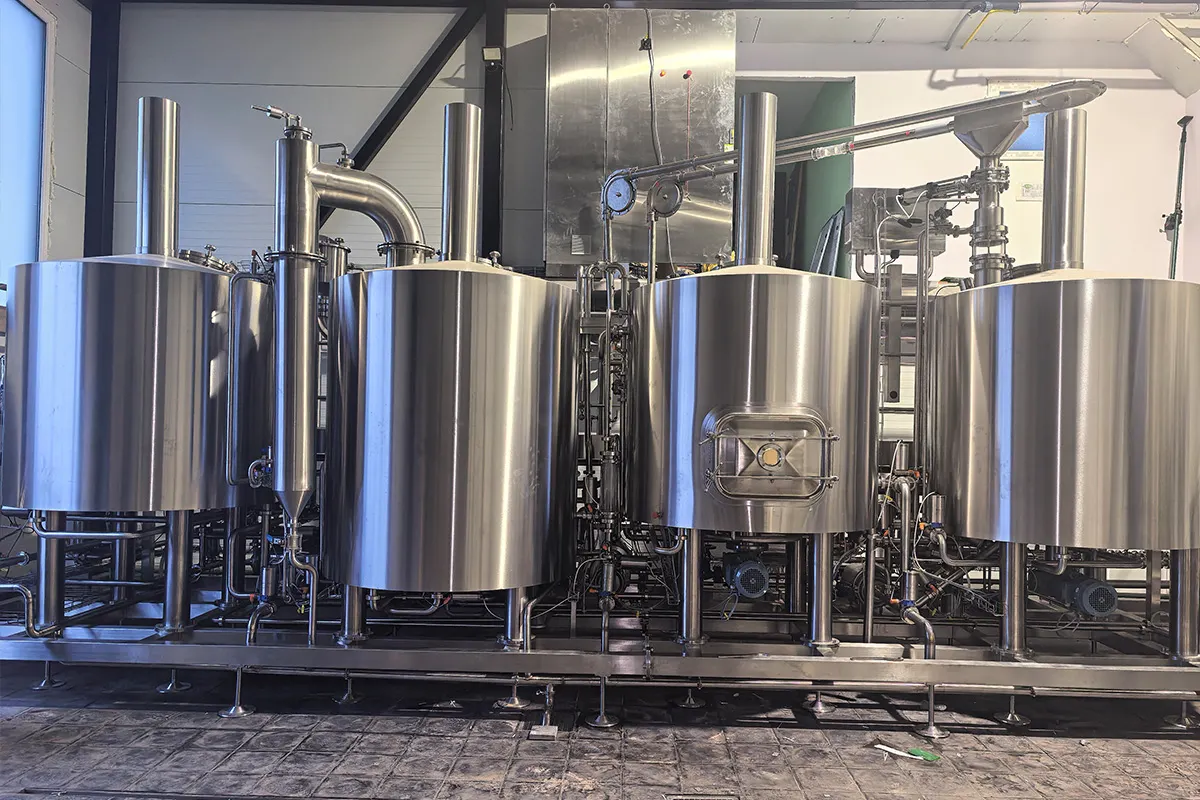

Configuration：Mash tun+lauter tun+kettle+whirlpool tank
Brewing time: up to 2-4 brews per day
Batch size：10HL/brew (cold wort output)
Heating method: Steam
Structure：Skid mounted
Surface treatment: Seamless surface polishing, inside passivated.
Assorted support unit：Full grain handling unit;
Water system: 30-40HL hot water tank+20HL Cold water tank.
Automation: Semi automatic/full automatic
The 10hl brewhouse of 4 vessels is used for the micro breweries who are planing for middle scale production capacity, with more flexibility of brewing capacity and recipe.
Based on the concept of skid mounting, it is easy to transport, as most of the piping are with whole installation and transportation. This also makes the onsite installation being completed in short time.
The higher recommended basic automation software is easy to learn and operation, any brewers can get used to the operation with new brewhouse once there is installation completion.
The piping design, wiring, vessel design&workmanship is always under guarantee based on ZYB standard.
Bigger brewing flexibility
Easy for transport&mounting
Easy to operate
Good customization on automation
Skid mounting
World brand fittings: Kieselmann, Alfa Laval etc.
10HL Four Vessel Automatic Brewhouse System | |||
Grain handling system | |||
Malt Mill | 500-800kg/h | 1 set | 2 rollers, SS material |
Malt Conveyor | 1200kg/h | 1 set | Chain disc type, closed circulation to avoid further milled malt crushing during transfer to MT Protection sensors |
Grist hopper | 0.7m³ | 1 pc | SS304 steel fabrication |
Brewhouse | |||
Mash tun | 10HL | 1 pc | Coned top, fully insulated, optional: Domed seal |
Lauter tun | 10HL | 1 pc | Coned top, fully insulated; optional: Domed seal Flat bottom, with square steel support Counter washing pipe for good cleaning effect. Optional filter plate: Trislot |
Kettle | 10HL | 1 pc | Coned top, fully insulated; optional: Domed seal |
Hops additive | 10L | 1 set | Hops additive vessel installed on cylinder part Easy to clean |
whirlpool tank | 10HL | 1 pc | Coned top, fully insulated Flat bottom, square steel support, with 1 degree slope 3×clear wort outlet, 2 at cylinder, 1 at bottom 1 pcs draining outlet. |
Heat exchanger | 20HL/H | 1 set | Single stage Optional brand: Alfa Laval. |
Pumps | 3-5m³/h | 4 sets | Centrifugal pump |
Steam condensing unit | DN200 | 1 set | Installed with kettle for evaporation reusing Cold water spray nozzles inside for condensing while boiling. Optional: Venting pipe extended to outside of facility. |
Wort grant | 15L | 1 set | Visible glass |
Wort sink | 1 set | Sample taking and plato test etc | |
Valves | DN50/32 | Assorted | Pneumatic valves, optional proximity switch Standard: DIN11851 |
Piping | DN50/32 | Assorted | For the whole brewhouse connection Standard: DIN11851 |
Sensors | Assorted | Pressure sensor with vessels for volume detect | |
Water station | |||
Hot water tank | 30HL | 1 pc | Heating method: Steam jacket/coil With hot water returning from wort cooling process |
Hot water pump | 5m³/h | 1 set | Centrifugal pump SS304L pump head |
Piping&valves | / | Assorted | Standard: DIN11851 Connection: TC/Thread/flange etc |
Control system | |||
Main Control panel | 1 set | Stainless steel material, IP55/65 | |
Pneumatic control panel | 1 set | Stainless steel material; IP55/65 | |
Monitor | 1 set | 15" Siemens HMI or | |
Software | 1 set | ZYBREW software designed/programmed as exact brewing process request. | |
Basic fitting brand: | / | PLC: Siemens Speed controller: Danfoss Low voltage: Schneider Control panel: TUV or UL certified Other customization possible | |
Cold water tank for wort cooling
Turbidity meter
Tubular heat exchanger for hot water heating
Brand update on heat exchanger: Alfa Laval.
Pump upgrade: Evoguard or Alfa Laval.
