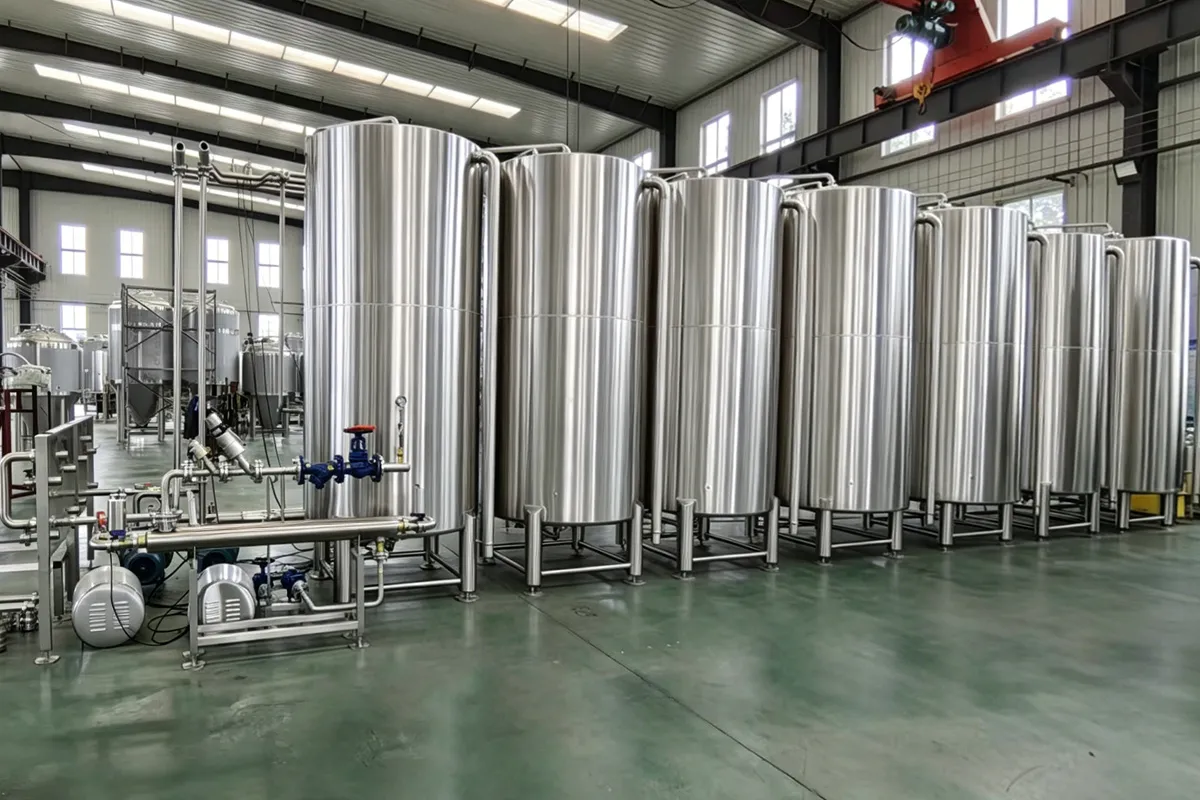

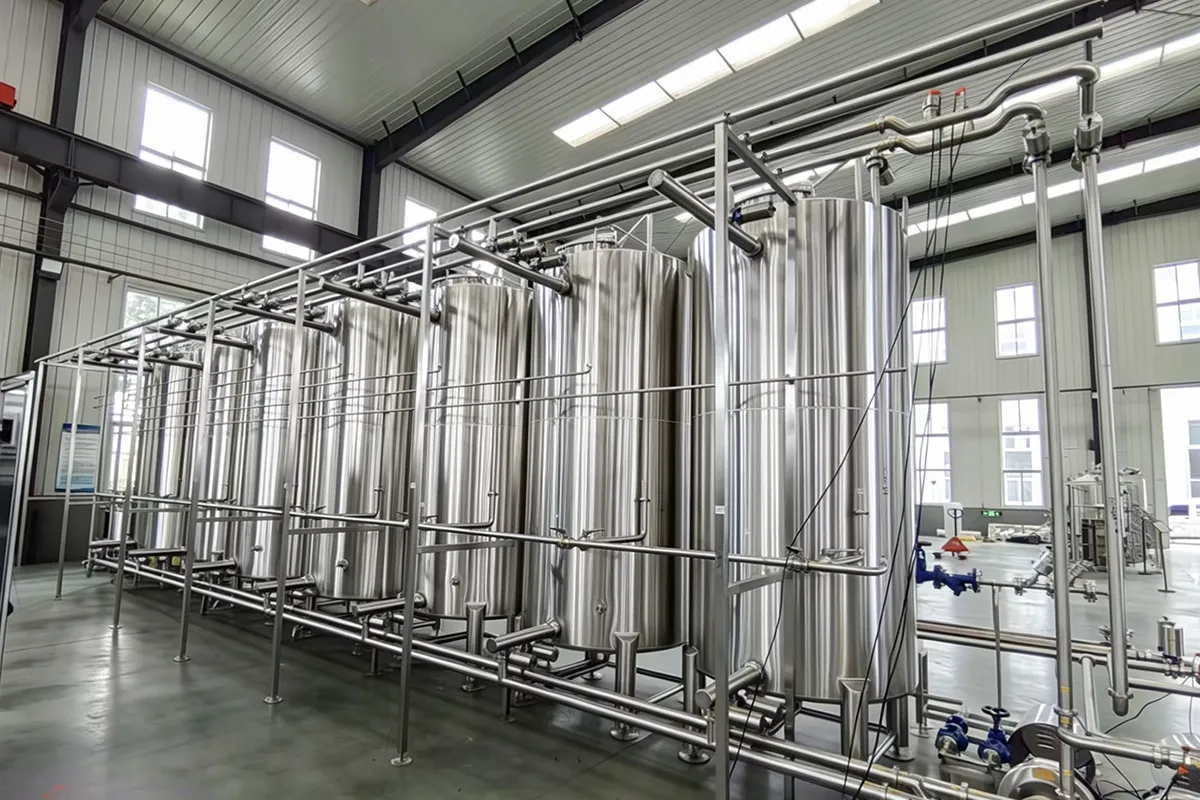

2000L 5000L Fully Automatic CIP System For Large Scale Production
Basic capacity: 2000-5000L
Configuration: Hot caustic tank +cold caustic tank +acid tank+disinfection tank+ hot water tank+clean water tank+recovery water tank
Function: Filtered CIP unit or unfiltered CIP
Automation: Fully automatic
Hard piping cleaning connection extended to the whole brewing system.
PLC control panel, automation, combined with whole system automation
The 2000l 5000l fully automatic cip system is used for large scale production request, who has the whole brewing system or beverage production line etc, which is fully configured and higher automated.
For industry beer or other beverage production, the CIP system keep running for cleaning while the daily production not stop.

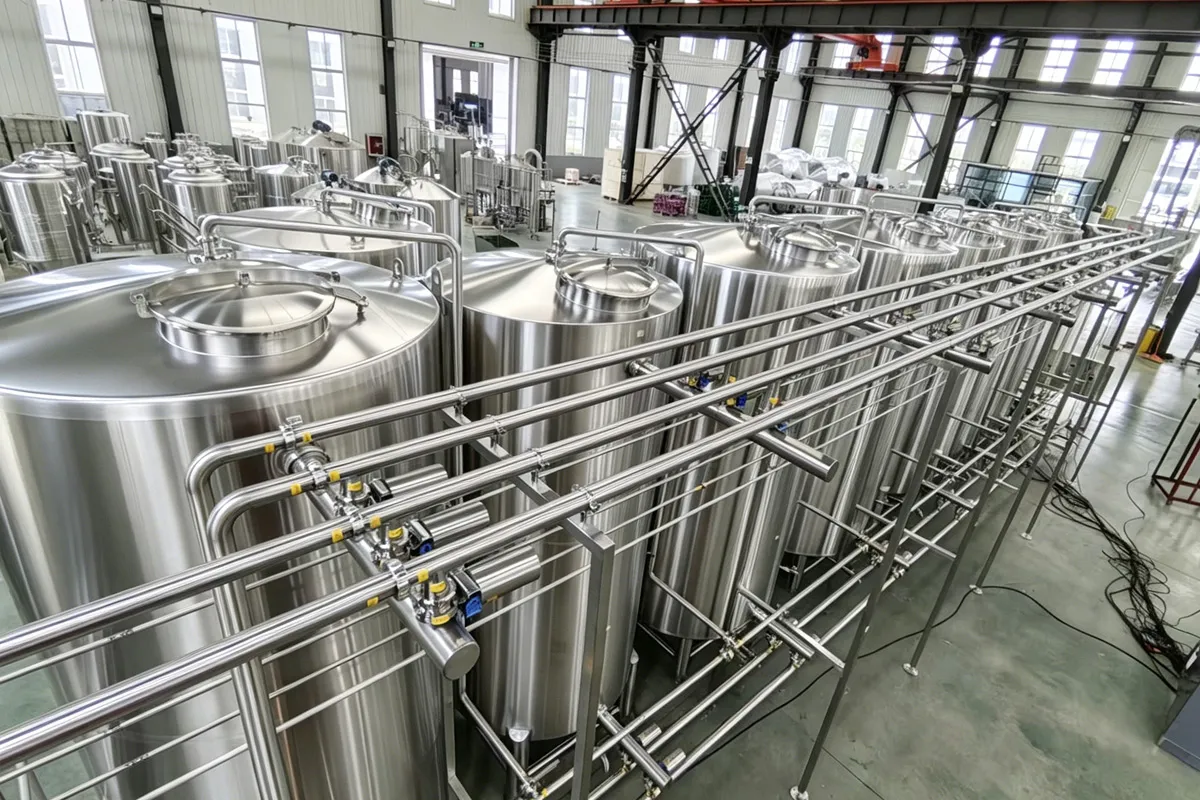

The CIP station is with hard piping extended to all the main production parts and necessary utilities to be cleaned. The full program software is with CIP recipes combined, and cleaning being completed via concentrated operation via PC.

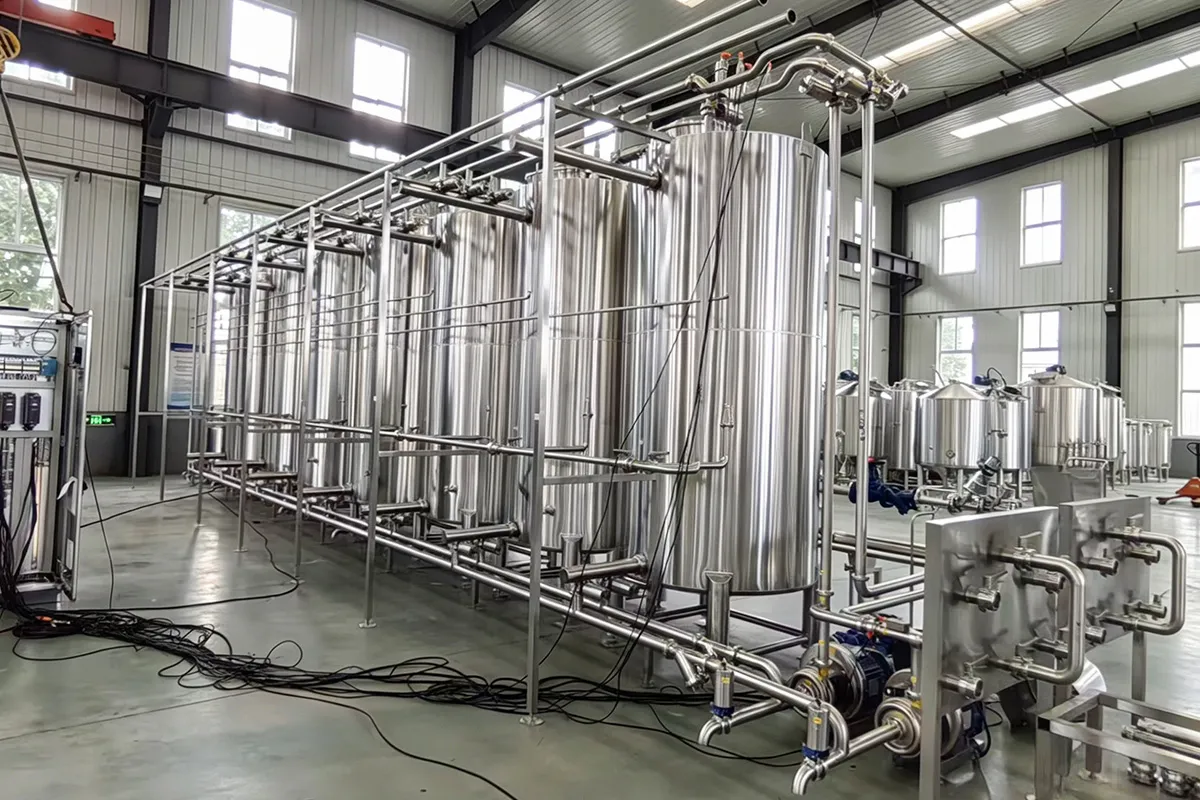

Based on different cleaning process request, the CIP system configuration differs from 5-7 tanks, or being combined with part of exist unit like water tanks etc.
Continuous working condition
Perfect cleaning effect.
Highest automation level
100% full configured.
Well fitted for large scale production
Full recipe&cleaning reach to the whole plant.
3000-5000L Full Automatic CIP System | |||
In General | The top configured Automation For big production capacity A big industry being fitted with such CIP system. | ||
Hot Caustic tank | 3000L-5000L | 1 pc | Function: Hot caustic preparation for cleaning SUS 304 S/S material Double layers & insulated Inside tank thickness: 3-4mm, outer: .2-3mm(differs as capacity) Aluminum silicate, thickness: 100mm Easy open top lid, leakage proof Stainless steel legs with adjustable leg bolt CIP spray ball for self cleaning, rotating type Liquid level, sample valve CIP recirculation&returning pipe Heating: steam via tubular heat exchanger Automation: Pressure sensor at bottom. Empty flow sensor at chemical liquid outlet PT100 temp sensor. Pneumatic diaphragm valve for steam flow control |
Cold Caustic tank | 3000L-5000L | 1 pc | Function: Hot caustic preparation for cleaning SUS 304 S/S material Double layers & insulated Inside tank thickness: 3-4mm, outer: .2-3mm(differs as capacity) Aluminum silicate, thickness: 100mm Easy open top lid, leakage proof Stainless steel legs with adjustable leg bolt CIP spray ball for self cleaning, rotating type Liquid level, sample valve CIP recirculation&returning pipe Automation: Pressure sensor at bottom. Empty flow sensor at chemical liquid outlet |
Acid tank | 3000L-5000L | 1 pc | Function: Acid storage&preparation for cleaning SUS 304 S/S material Single layer Tank cylinder&bottom material thickness: 3mm Easy open top lid, leakage proof SS support legs, adjustable leg bolts with leg plate CIP spray ball for self cleaning, rotating type Liquid level, sample valve CIP recirculation&returning pipe Automation: Pressure sensor at bottom. Empty flow sensor at chemical liquid outlet |
Disinfectant tank | 3000L-5000L | 1 pc | Function: storage&preparation for cleaning SUS 304 S/S material Single layer Tank cylinder&bottom material thickness: 3mm Easy open top lid, leakage proof SS support legs, adjustable leg bolts with leg plate CIP spray ball for self cleaning, rotating type Liquid level, sample valve CIP recirculation&returning pipe Automation: Pressure sensor at bottom. Empty flow sensor at chemical liquid outlet |
Cleaning water tank | 3000L-5000L | 1 pc | SUS 304 S/S material Single layer Tank cylinder&bottom material thickness: 3mm Easy open top lid, leakage proof SS support legs, adjustable leg bolts with leg plate CIP spray ball for self cleaning, rotating type Liquid level, sample valve CIP recirculation&returning pipe Automation: Pressure sensor at bottom. Empty flow sensor at chemical liquid outlet |
Hot water tank | 3000L-5000L | 1 pc | Function: Hot caustic preparation for cleaning SUS 304 S/S material Double layers & insulated Inside tank thickness: 3-4mm, outer: .2-3mm(differs as capacity) Aluminum silicate, thickness: 100mm Easy open top lid, leakage proof Stainless steel legs with adjustable leg bolt CIP spray ball for self cleaning, rotating type Liquid level, sample valve CIP recirculation&returning pipe Heating: steam via tubular heat exchanger Automation: Pressure sensor at bottom. Empty flow sensor at chemical liquid outlet PT100 temp sensor. Pneumatic diaphragm valve for steam flow control |
Recovery water tank | 3000L-5000L | 1 pc | Function: Hot caustic preparation for cleaning SUS 304 S/S material Double layers & insulated Inside tank thickness: 3-4mm, outer: .2-3mm(differs as capacity) Aluminum silicate, thickness: 100mm Easy open top lid, leakage proof Stainless steel legs with adjustable leg bolt CIP spray ball for self cleaning, rotating type Liquid level, sample valve CIP recirculation&returning pipe Heating: steam via tubular heat exchanger Automation: Pressure sensor at bottom. Empty flow sensor at chemical liquid outlet PT100 temp sensor. Pneumatic diaphragm valve for steam flow control |
CIP Pump | 15-30m3/h | 2 | Function: Separately for tanks and piping line cleaning S/S 304Sanitary grade;Motor brand: ABB |
CIP returning Pump | 10-20m3/h, | 2 | Type: Self prime pump Function: CIP cleaning liquid recovery S/S 304, Sanitary grade Motor brand: ABB |
Heating unit | / | 1 set | Type: Tubular heat exchanger, caustic/water heating; Automatic heating control Higher heating efficiency&precise temp control |
Steam lines | DN32/25 | 1 set | Fully assembled&insulated |
Conductivity | / | 1 set | Brand: IFM |
Dosing unit | / | 2 | Diaphram pump For soda, acid chemical dosing |
Control panel | / | 1 | Stainless steel control panel, IP55 PLC Control, Siemens, S7-1200 |
Customized 5 vessel configuration: Hot caustic+acid+hot water+recovery tank+clean water tank
Customized 4 vessel configuration: Hot caustic+acid+disinfection tank+sterilize tank
Other customized configuration as end user’s request.
Word brand fittings: Alfalaval pump&valves, APV etc
