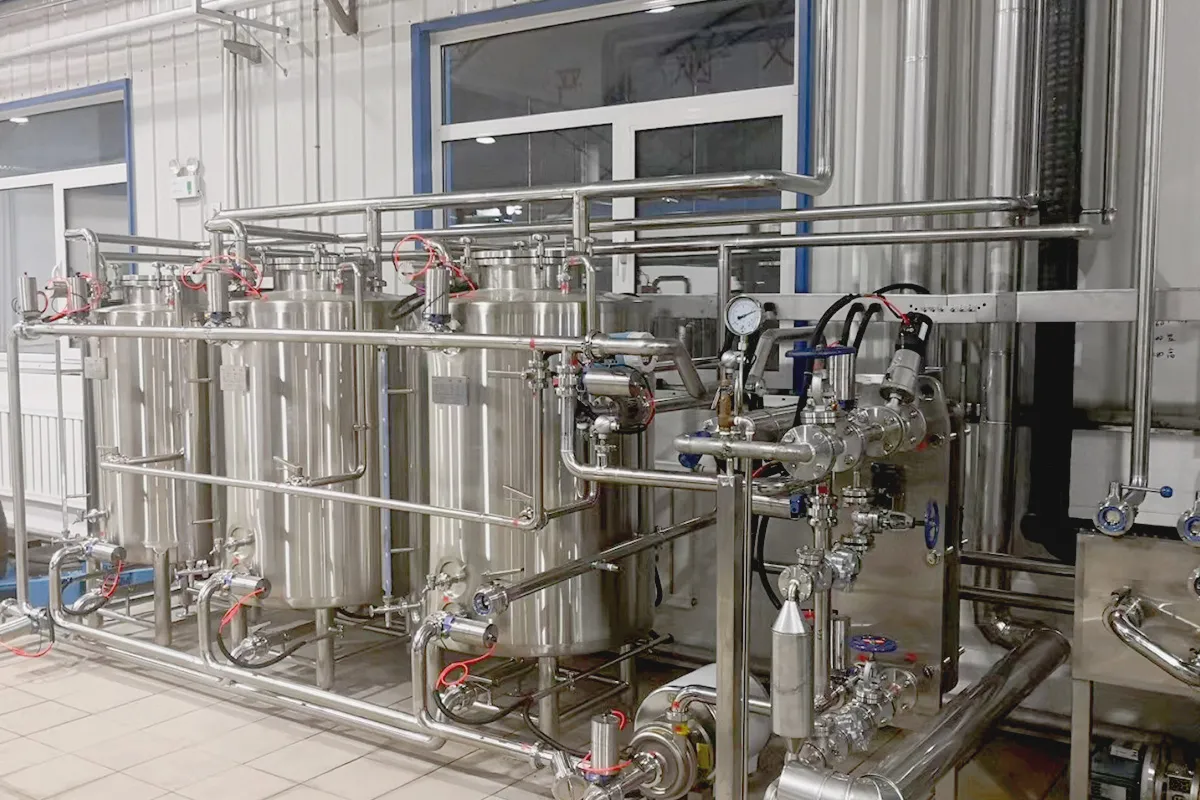

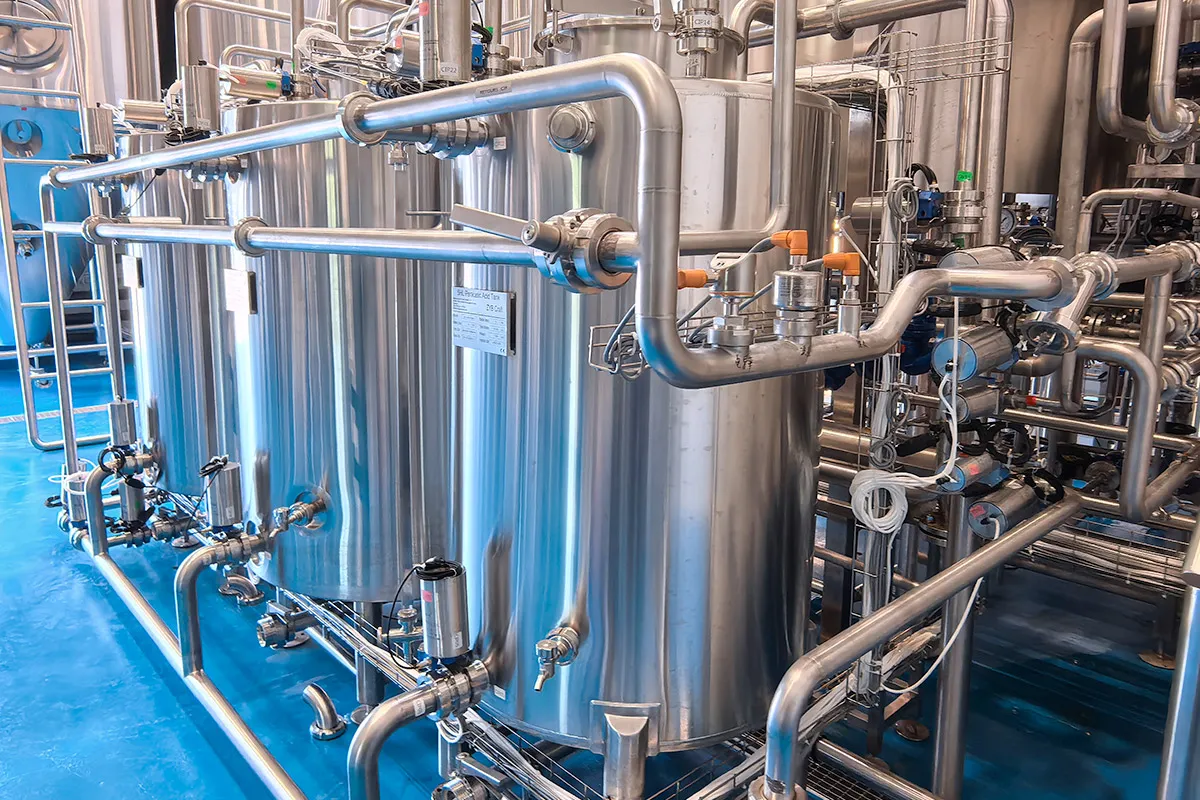

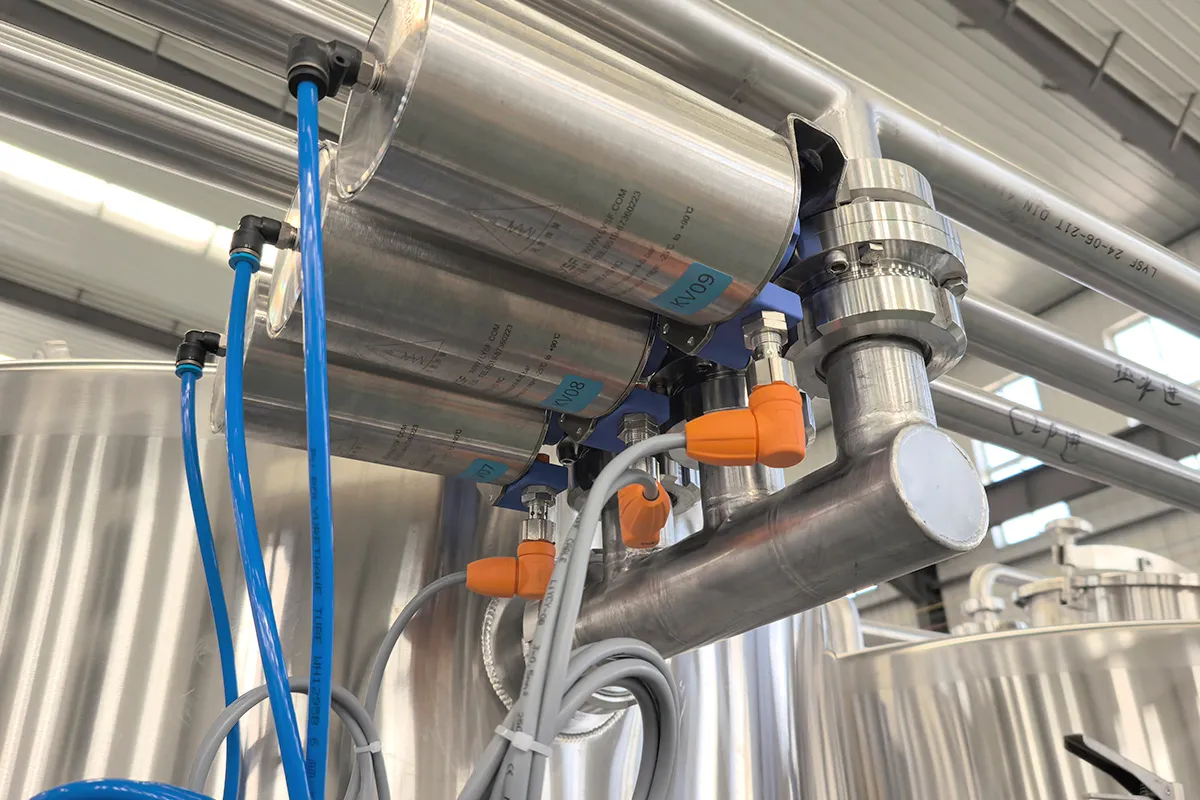

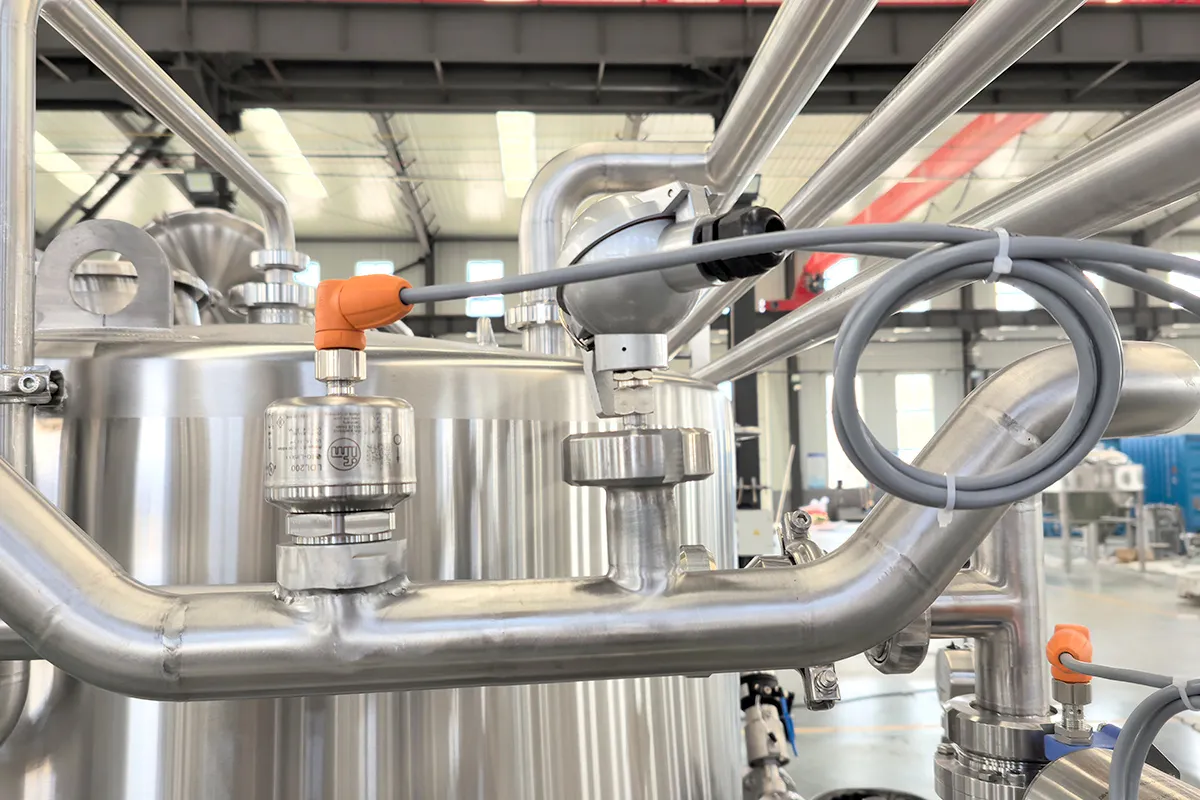

300L 400L 500L 3 Vessels CIP system
Basic configuration: 3 Vessels
Volume: 300L/500L/1000L
Configuration 1: Caustic tank+Acid tank+Sterilize tank
Configuration 2: Caustic tank + percetic acid tank+hot water tank
Automation: Manual; Semi automation; Fully automation
Structure: Fully skid mounted
Extra chemical dosing unit
Heating: Steam or electric
Control: PID control or PLC control.
The 300l 400l 500l cip system is widely used for different industries, eg beer, beverage, food, chemical etc.
We design the compact solution with whole brewhouse system between 300-500L skid mounted and do easy operation of “Plug and play”.
We bring the end user with perfect cleaning process for further guarantee on avoid contamination problem. The connection with exist production plant is easy via either flexible hose or hard piping extended to the whole system.
Small space saving
“Plug and play” operation
Automatic cleaning
Perfect cleaning effect.
Widely used for different industries.
Flexible customization as exact request.
Three vessel CIP station | |||
Brewhouse | |||
In General | Automation: Automatic/semi automatic/Manual Customized configuration as the industry being used or special request from end user. | ||
Caustic tank | 300-1000L | 1 pc | Normal pressure tank SUS 304 S/S material Double layers & insulated Effective volume: 300-1000L, Inside tank thickness: 3mm, outer: 2mm Aluminum silicate, thickness: 80-80mm Top lid, leakage proof Stainless steel legs with adjustable leg bolt CIP spray ball for self cleaning, rotating type Liquid level, sample valve CIP recirculation&returning pipe Heating: steam (electric coil, jacket or tubular HE) Automation: Pressure sensor at bottom. Empty flow sensor at chemical liquid outlet PT100 temp sensor. Auto regulation valves for flow control |
Acid tank | 300-1000L | 1 pc | Normal pressure tank SUS 304 S/S material Single layer Effective volume: 300-1000L Tank cylinder&bottom material thickness: 3mm Top lid, leakage proof SS support legs, adjustable leg bolts with leg plate CIP spray ball for self cleaning, rotating type Liquid level, sample valve CIP recirculation&returning pipe Automation: Pressure sensor at bottom. Empty flow sensor at chemical liquid outlet PT100 temp sensor. |
Disinfectant tank | 300-1000L | 1 pc | Normal pressure tank SUS 304 S/S material Single layer Effective volume: 300-1000L Tank cylinder&bottom material thickness: 3mm Top lid, leakage proof SS support legs, adjustable leg bolts with leg plate CIP spray ball for self cleaning, rotating type Liquid level, sample valve CIP recirculation&returning pipe Automation: Pressure sensor at bottom. Empty flow sensor at chemical liquid outlet PT100 temp sensor. |
CIP Pump | 5m3/h, 36m | 1 | Fixed pump connected with tanks together Material: S/S 304 Sanitary grade Flow rate: 10m3/h, lift height: 36m Motor brand: ABB |
CIP returning Pump | 5-10m3/h, 24m | 1 | For prime pump Material: S/S 304 Sanitary grade Type: Prime pump Flow rate: 10m3/h, lift height: 24m Fixed pump with tanks and piping lines Motor brand: ABB |
Heating unit | / | 1 set | Type: Tubular heat exchanger Caustic heating via circulation via HE Automatic control Higher heating efficiency&precuse temp control |
Steam lines | DN32/25 | 1 set | Steam supply line, with stop valve, filter, pneumatic control valve Steam condensing line, with trap valve etc Full steam piping configured, industrial piping Steam connection: Flange Assorted T and elbows With rockwool insulation on main steam line |
Conductivity meter | / | 1 set | Brand: IFM (optional) |
Dosing unit | / | 2 | Diaphram pump Quantity: 2 sets For soda, acid, desinfection All connected with PLC system for auto CIP process control |
Control panel | / | 1 | Stainless steel control panel, IP55 PLC Control;Siemens PLC S7-1200 Stainless steel control panel Danfoss VFD for pump For automatic CIP Caustic tank heating automatically Automatic CIP process Assorted with signal wires&power cables etc. |
Monitor | 12” | 1 | Siemens PLC Size: 12” |
Customized CIP configuration as exact cleaning process
Tubular heat exchanger for higher heating efficiency
Full hard piping connection
More chemical dosing
More vessels for other chemical to be added
