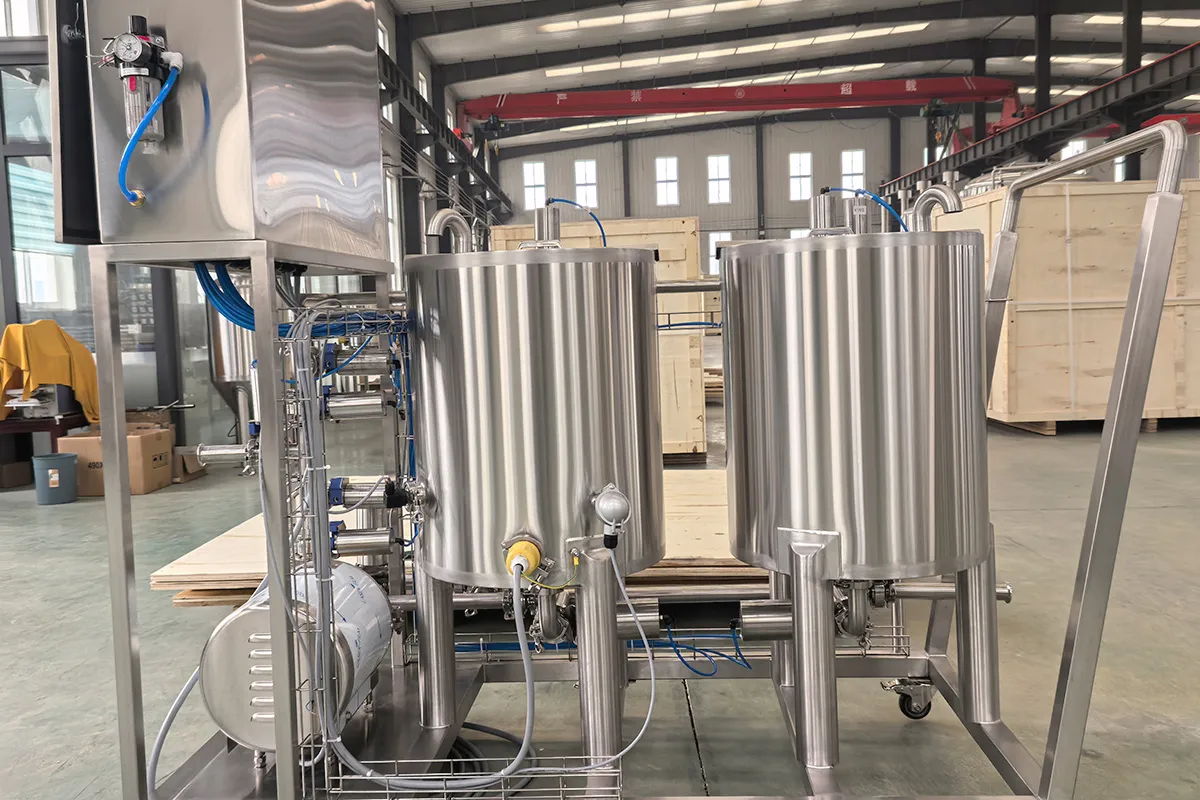

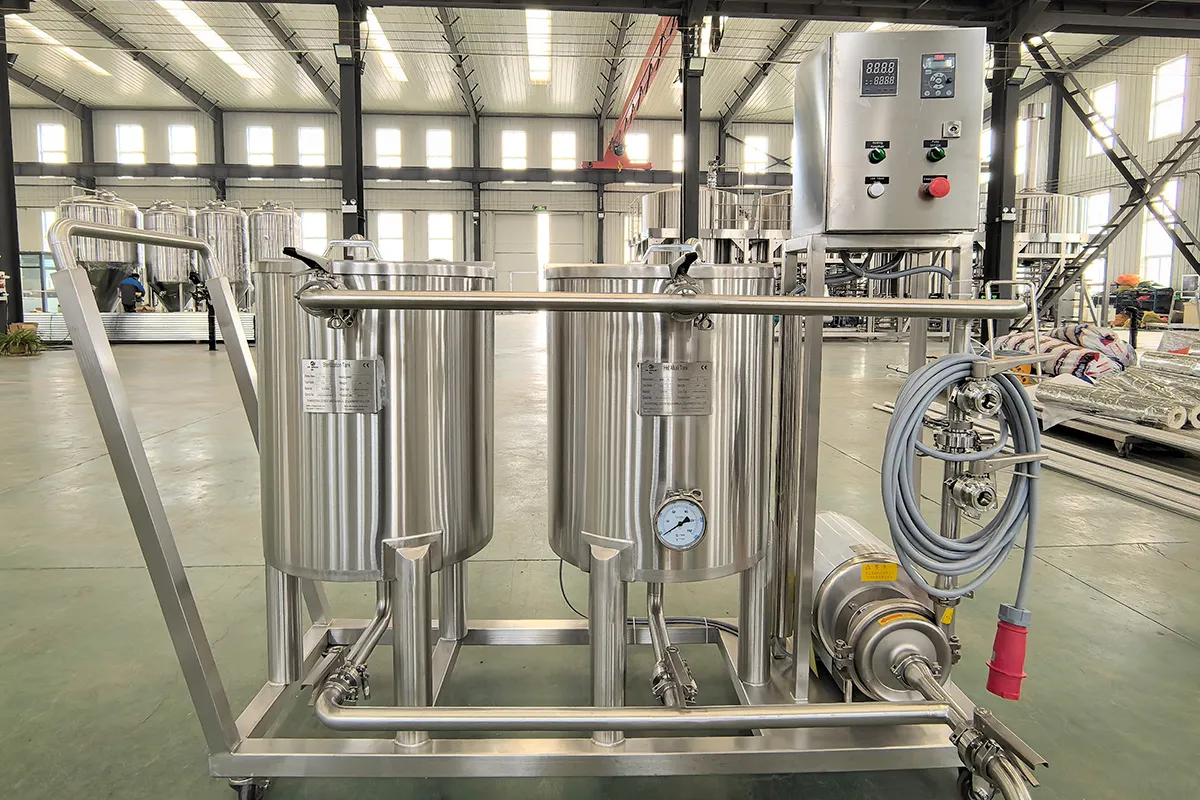

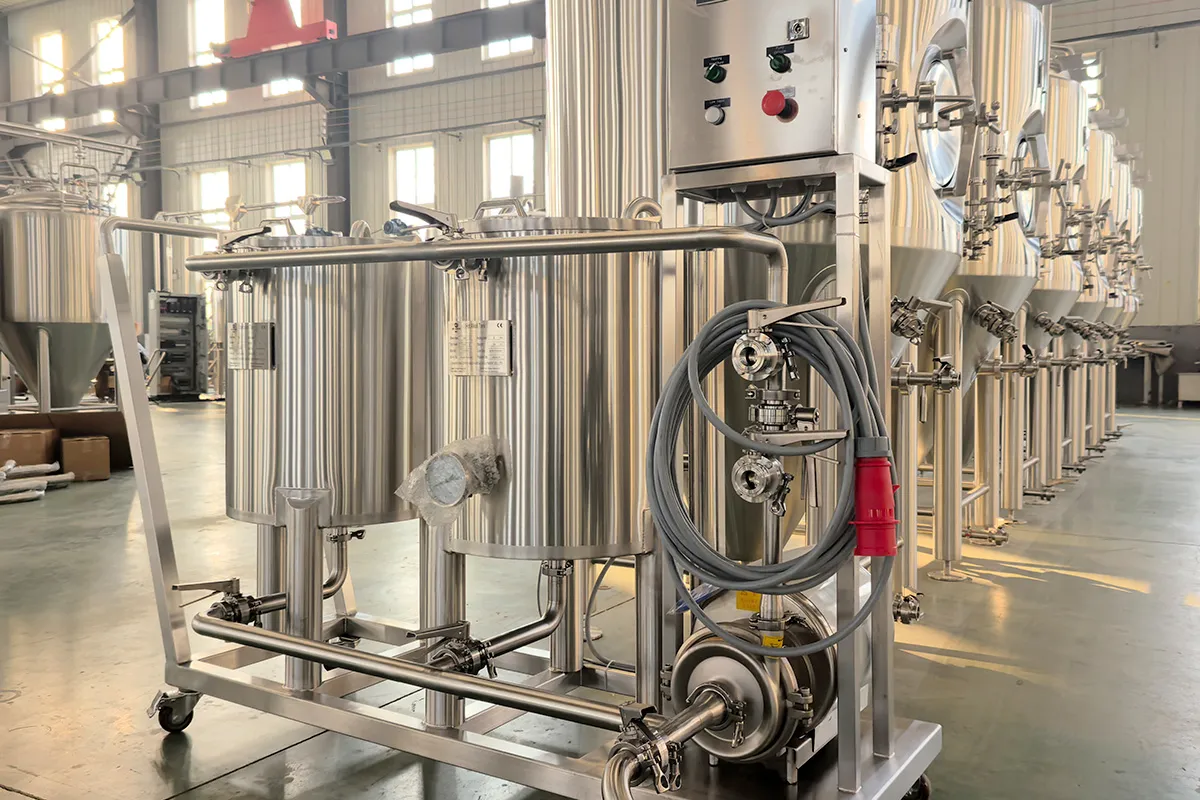

50L 100L 200L CIP Cart
Basic configuration: Caustic tank + Acid tank (Possible for 3 vessels customization)
Volume: 50L - 200L
Trolley mounted
Manual control or customized auto Control
Fully and configured
The 50l 100l 200l cip cart is widely used in small micro breweries who has basic configuration and small production volume.
It is a unit which is easy to operate, the end user can keep it somewhere out of production region, but only keep it while needing for cleaning of tanks etc.
Each CIP cart is configured with control panel for automatic temp control and pump speed controller.
The flexible hoses is configured and for connection between the CIP trolley and tank, easy operation, easy maintaining etc.
Besides, it can be used for others like beverage, Kombucha, meadery, dairy and chemical etc.
Easy to move
Small space occupation
Easier operation
Widely used for different industries.
Three vessel CIP station | |||
No. | Item | Qty | Spec |
1. | Caustic tank | 1× | Normal pressure tank Effective volume: 50-200L Jacketed and insulated Thickness: inside 3mm With top lead , diameter: 400mm Bottom outlet Top chemical feeding port and CIP returning inlet 3* SS legs, on bottom skid Electric heater Heating power: 4-9KW |
2. | Acid tank | 1× | Normal pressure tank Effective volume: 50-200L Tank thickness: 3mm With top lead , diameter: 400mm Bottom outlet Automatic chemical feeding and CIP process control 3* SS legs, on bottom skid |
3. | CIP supply Pump | 1× | Material: S/S 304 Sanitary grade Flow rate: 5m3/h, lift height: 36m Fixed pump with tanks and piping lines |
4. | CIP Cart | 1× | Square stainless steel For mounting of two vessels&pump With wheels Connection for CIP supplying&returning |
5. | Piping line & Valves | Assorted | Stainless steel Food grade Piping connection following the exact design Pneumatic butterfly valves |
6. | CIP Control panel | 1× | Stainless steel panel Power switch VFD control on pump 1*Temp indication of caustic tank, PT100 Electric heater control |

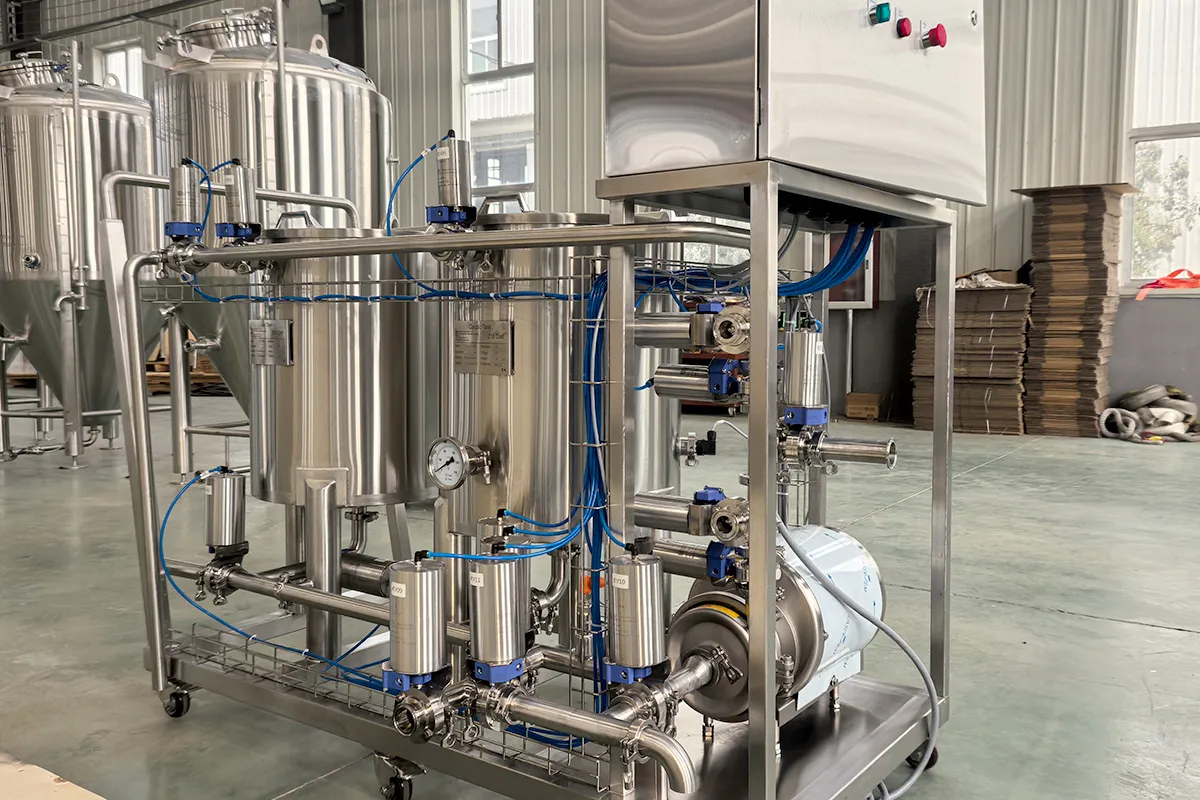

Three vessel configuration
Partial automation
PLC control panel
