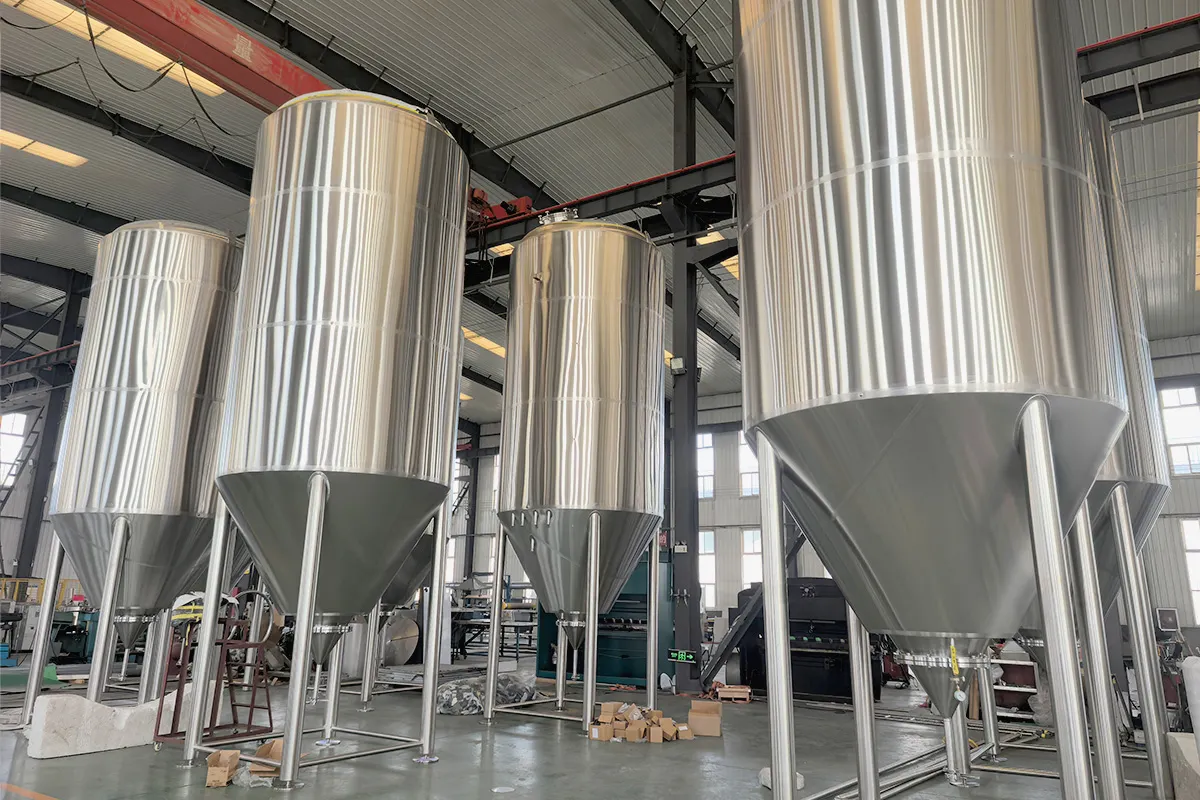

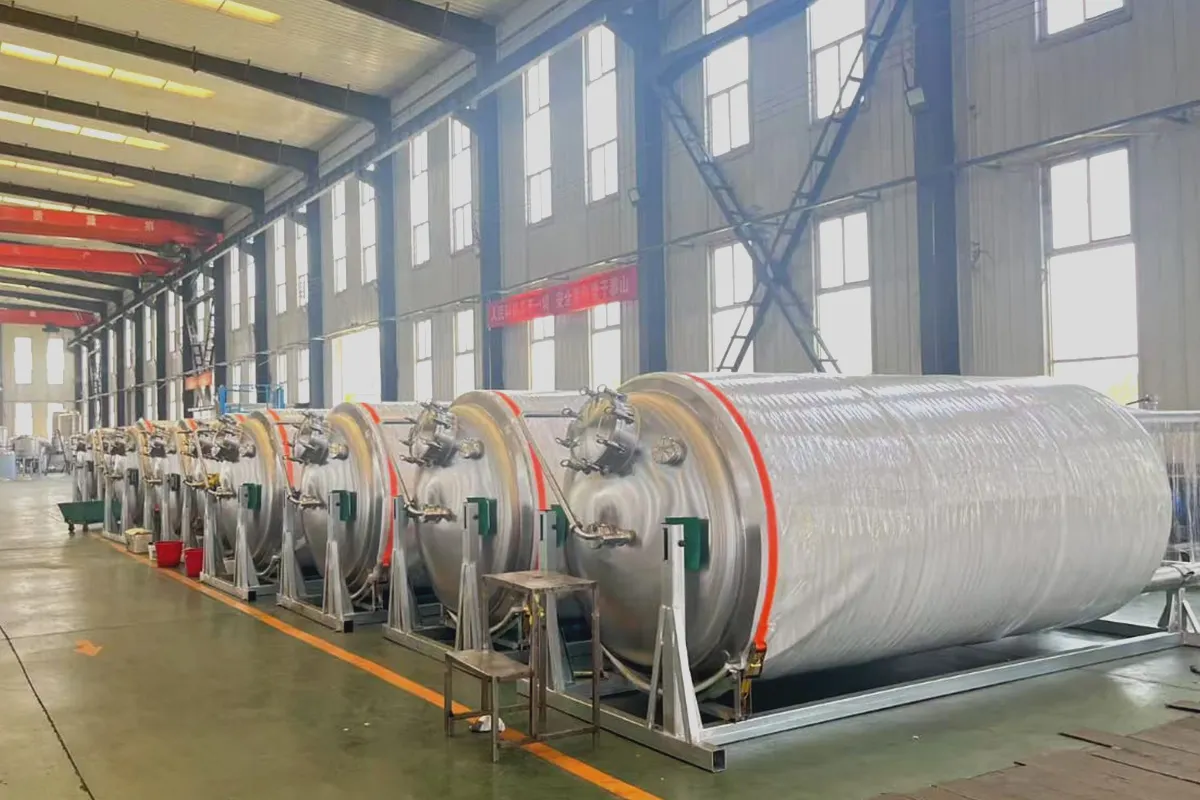

200HL Fermentation Tank
Effective Volume: 200HL
Total Volume: 267HL
Tank Diameter: 2300-2700mm (Or customization)
Tank Height: 6000-9800mm (Or customization)
Cooling Area: 20㎡
Cone Angle: 60° (Can be customized according to needs)
Tank Design Pressure: 2 Bar
Tank Test Pressure: 3 Bar
Design Temp: -5~40℃
Customization on dimension to fit facility or container request.
The conical fermentation uni tank is a widely used capacity for breweries who wants to do large scale production or with big expansion.
The whole fermentation and maturation process being completed in the sale vessel which helps lowers the risk of contamination while beer transfer.
The standard material is SS304 or SS304L, which differs as the exact climate in different regions.
Reasonable bottom angle is good for the circulation in side tank while fermentation, and yeast pitching get easier too. The customized design on bottom angle and basic dimension is possible based on the request or transportation, facility etc.
Inside surface treatment is always under guarantee, therefor we have good cleaning effect before and after each brew.
The jacket quantity and location with tank is related with the volume during production process. The overall cooling area is reasonable for precise temp maintaining.
To simplify the process of removing yeast, the design incorporates a 60° cone angle.
There is an option to enhance the interior surface with optional features such as polished, brushed, and pickled passivation.
Depending on your specific fermentation process and brewing type, you can choose between shadowless manholes or top manholes.
The tank is designed with a larger head space, and the covering head space volume is separately and additionally calculated for your convenience.
Operating the tank is made easy with the inclusion of a dedicated ladder.
For simple lifting, the tank comes equipped with lifting lugs.
To guarantee proper tank alignment and leveling, adjustment bolts are provided.
Basic tank specification | |||
Type | Cylinder&conical | ||
Medium | Beer | ||
Top | Domed seal, 2000*4mm | ||

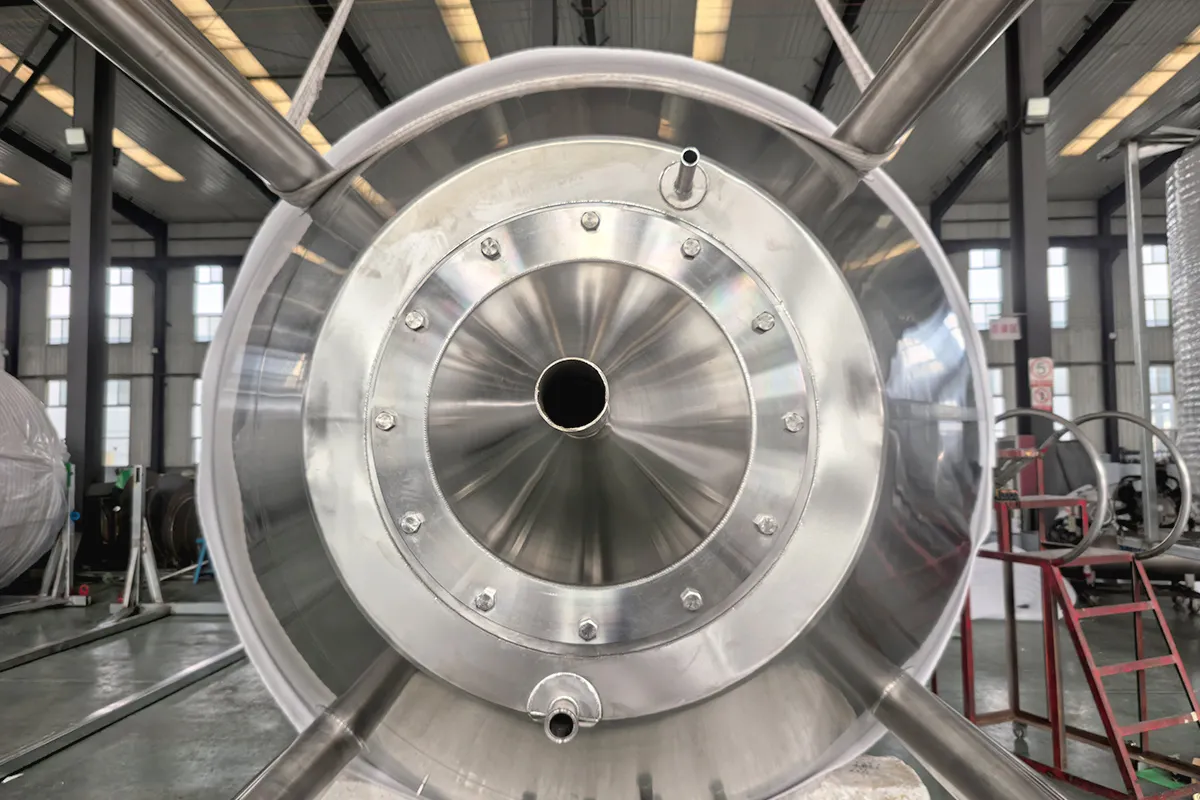

Bottom | Conical, 60 degree | ||
Material | AISI304 | ||
Effective volume | 200 | HL | |
Total volume | 267 | HL | |
Diameter (ID) | 2000 | mm | |
Diameter(OD) | 2300 | mm | |
Height | 9500 | mm | |
Cooling area | 20 | M2 | |
Working pressure | 2-3 | BAR | |
Test pressure | 3-4 | BAR | |
Design temp | -5~40 | °C | |
Tank Inside | |||
Material | AISI 304 | ||
Domed seal | Ra≤0.6 | μm | |
Cylinder | Ra≤0.6 | μm | |
Welding joint | Ra≤0.6 | μm | |
Cone bottom | Ra≤0.6 | μm | |
Thickness | 4 | mm | |
Cone thickness | 5 | mm | |
Tank outer cladding | |||
Material | AISI 304 | ||
Thickness | 2 | mm | |
Cone thickness | 3 | mm | |
Cooling jacket | |||

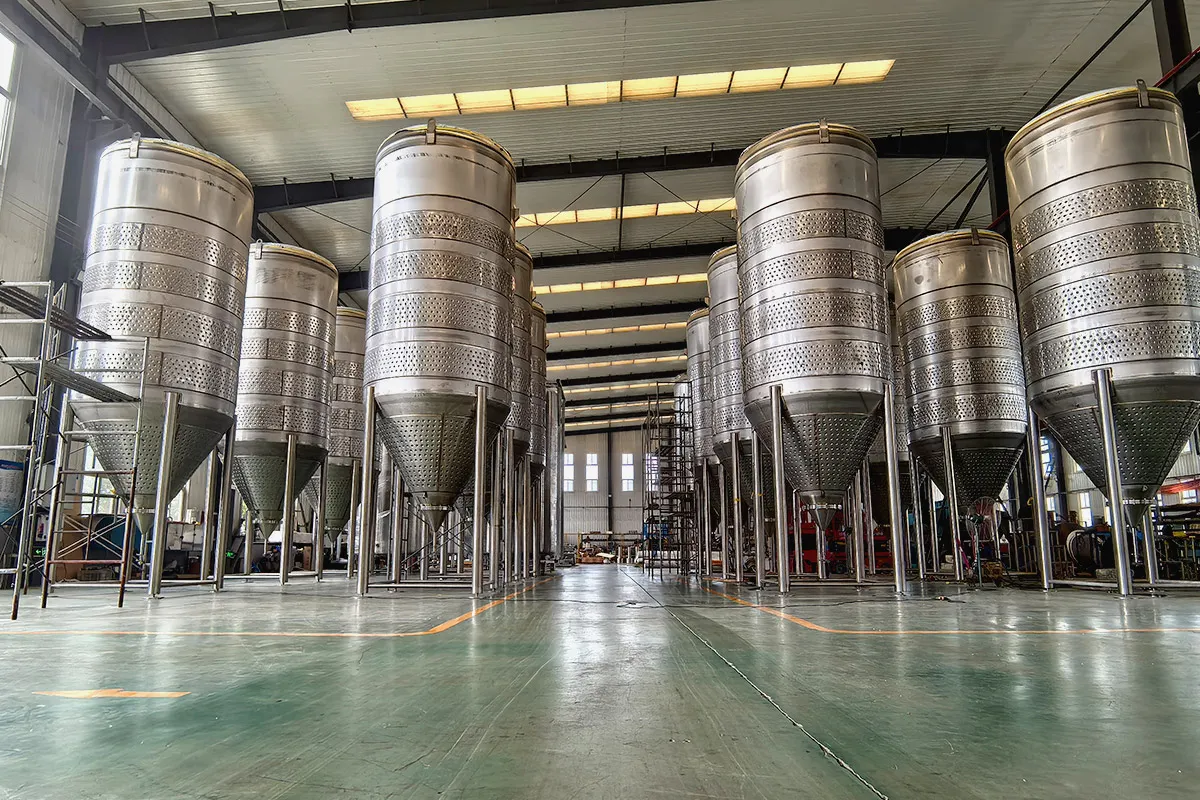

Type | Dimple jacket | ||
Quantity | 7 | PC | |
Cylinder jacket | 6 | PC | |
Conical jacket | 1 | PC | |
Working pressure | 2 | bar | |
Test pressure | 3 | bar | |
Insulation | |||
Insulation | Polyurethane | ||
Density | ≥40 | kg/m³ | |
Thickness | 100-150 | mm | |
Support legs | |||
Quantity | 4 | Pc | |
Material | AISI304 | ||
Diameter | 219 | mm | |
Thickness | 4 | mm | |
Adjustable leg plates | 4 | sets | |
Material | AISI304 | ||
Diameter | 219 | mm | |
Thickness | 5 | mm | |
Screw length | 150 | mm | |
Fittings | |||
1× | Tank top device | Flange connection, DN500 Safety unit. PVRV Tank CIP arm | |
1× | Tank bottom device | Flange connection DN400-450 With bottom beer/drain outlet | |
1× | Sample valve | DN15, butterfly valve Cone part installation | |
1× | Bunging valve | Pressure: 0.11-0.32 Mpa Connection: DN32, Crew | |
1× | Pressure gauge | DN32/38mm,Diaphragm type Diameter: 60mm, Range: 0-6bar | |
3× | Temp sensor | PT100,Length: 20cm; M8 Two for cylinder, one for cone | |
4× | Butterfly valve | 2×CIP arm , DN32 1× Drain outlet ,DN50 1× beer out | |
4× | Glycol inlet/outlet | DN32, TC Glycol in: 4 pcs Glycol outlet: 4 pcs | |
4× | Solenoid valve | DN25, TC For glycol cooling control | |
Other options | |||
Side manway | |||
Dry hopping port | With bland cap | ||
Racking arm | DN50 | ||
Carbonation unit | DN25 | ||
Remark: The 200HL Fermenter is installed with top flange assembly unit, with full safety unit, PVRV, CIP art combined. The whole cellar unit is installed with working platform for production operation on tank top. Fixed cellar piping system configured for the whole fermentation system | |||
PED certified solution for 100% legal in EU
Full automation on cellar tanks
Higher/lower pressure sensor for automatic volume detection
Full fixed piping line for cellar unit
Catwalk platform configured for fermentation system
Automatic sampling
