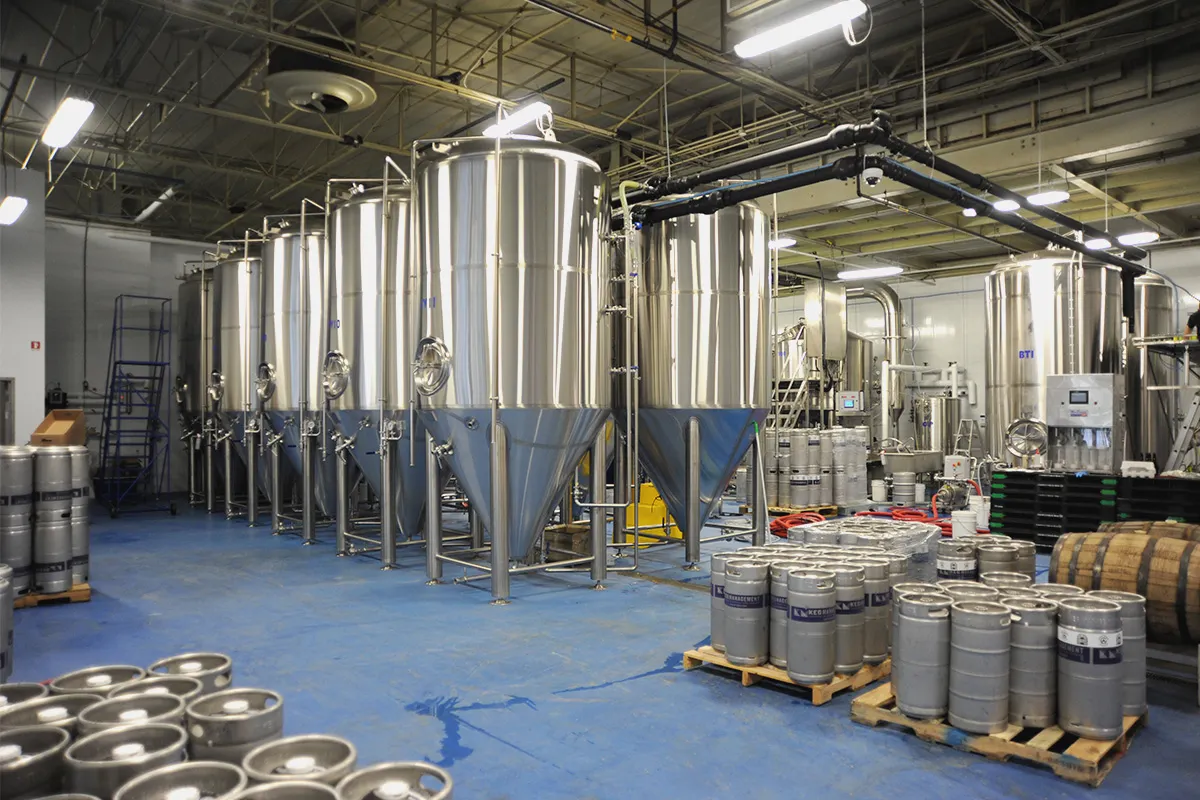

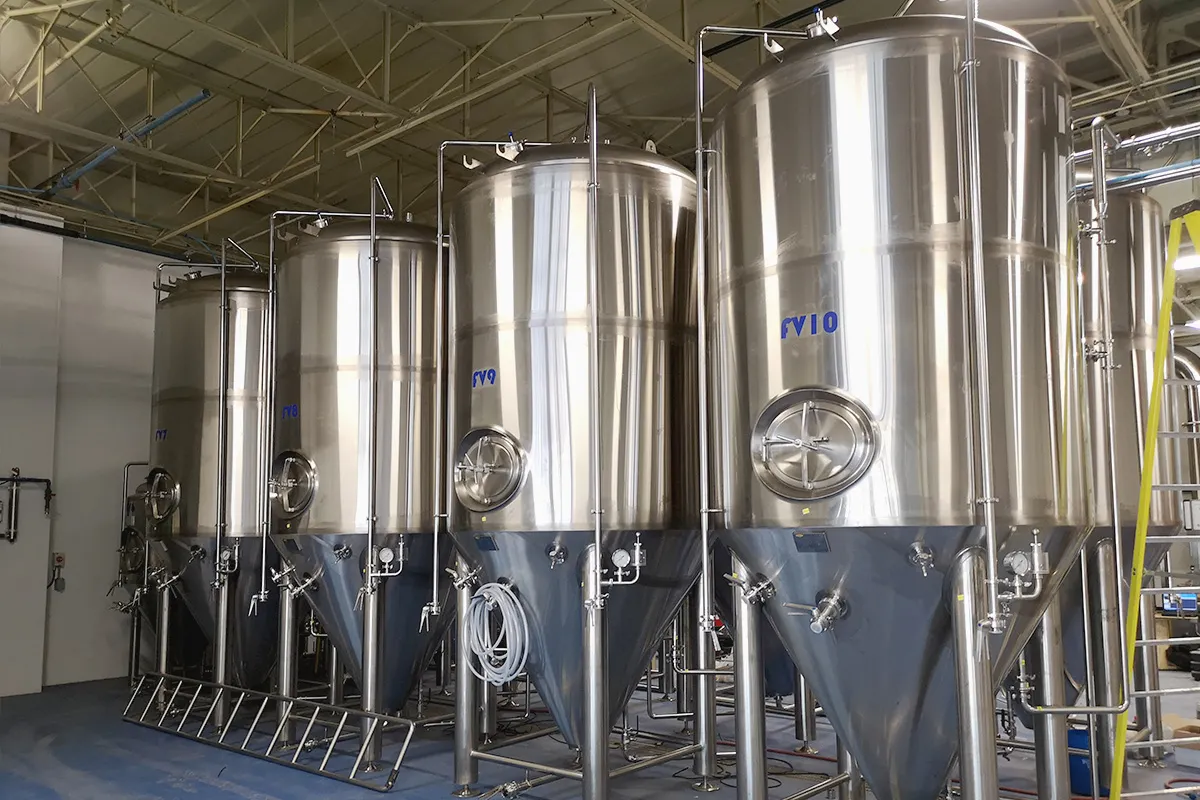

50HL Fermentation Tank
Effective Volume: 5000L
Total Volume: 6670L
Medium: Beer
Tank Diameter: 2000mm (Can be customized according to needs)
Tank Height: 4800mm (Can be customized according to needs)
Cooling Area: 7.1㎡
Cone Angle: 60°-72° (Can be customized according to needs)
Tank Design Pressure: 2 Bar
Tank Test Pressure: 3 Bar
Design Temp: -5~40℃

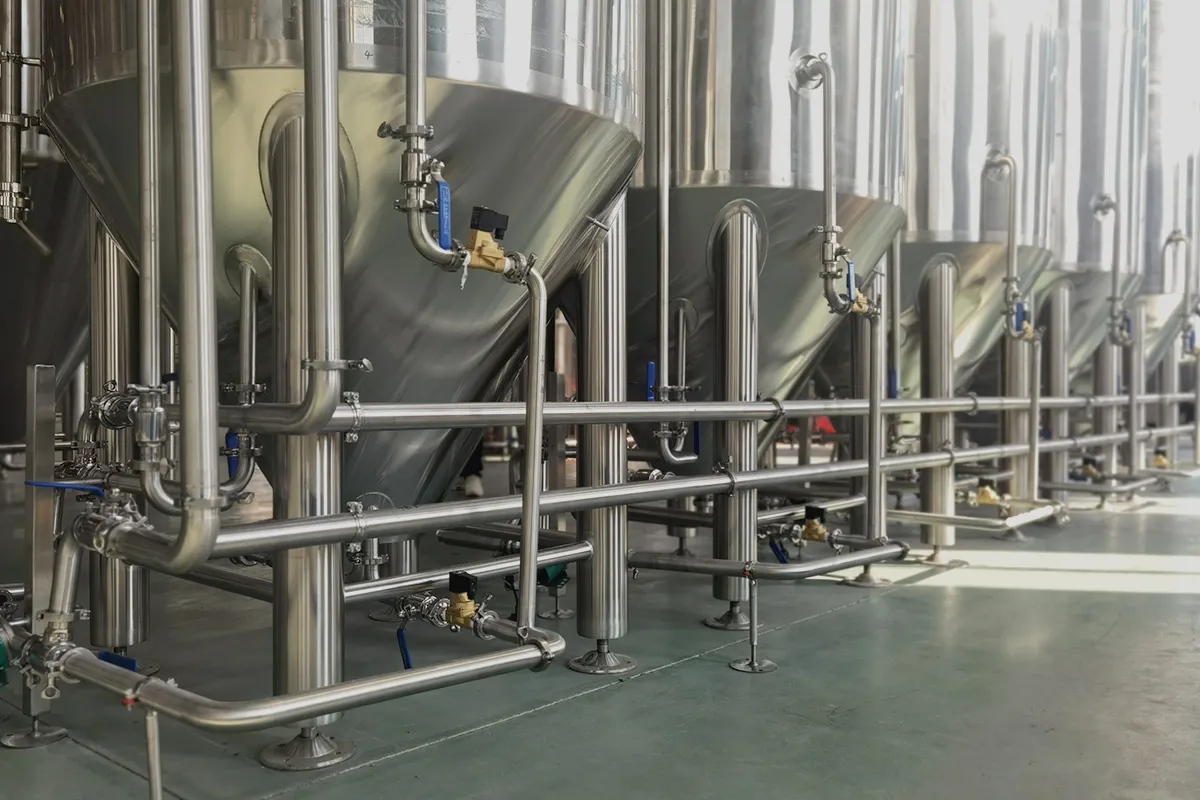

The conical fermentation tank embodies the essence of precision brewing and provides a versatile and efficient solution for micro or medium-sized breweries. Made of standard material of SS304 or SS304L, which differs as the exact climate in different regions.
The whole fermentation and maturation process being completed in the sale vessel which helps lowers the risk of contamination while beer transfer.
Reasonable bottom angle is good for the circulation in side tank while fermentation, and yeast pitching get easier too. Inside surface treatment is always under guarantee, therefor we have good cleaning effect before and after each brew.
The jacket design brings reasonable cooling area of the vessel, then more precise temp control during fermentation or lagering stage.
The tank design&fabrication fits different the authority regulation in different regions, therefor we have certificate of ASME, PED etc.
To simplify the process of removing yeast, the design incorporates a 60° cone angle.
There is an option to enhance the interior surface with optional features such as polished, brushed, mirror-polished, and pickled passivation.
Depending on your specific fermentation process and brewing type, you can choose between shadowless manholes or top manholes.
The tank is designed with a larger head space, and the covering head space volume is separately and additionally calculated for your convenience.
Operating the tank is made easy with the inclusion of a dedicated ladder.
For simple lifting, the tank comes equipped with lifting lugs.
Facilitating flexible beer conveying, the tank is equipped with a swivel rocker.
To guarantee proper tank alignment and leveling, adjustment bolts are provided.
Basic tank specification | |||
Type | Cylinder&conical | ||
Medium | Beer | ||
Top | Domed seal, 1600*4mm | ||
Bottom | Conical, 60 degree | ||
Material | AISI304 | ||
Effective volume | 50 | HL | |
Total volume | 67 | HL | |
Diameter (ID) | 1600 | mm | |
Diameter(OD) | 1800 | mm | |
Height | 6000 | mm | |
Cooling area | 7.1 | M2 | |
Working pressure | 2 | BAR | |
Test pressure | 3 | BAR | |
Design temp | -5~40 | °C | |
Tank Inside | |||
Material | AISI 304 | ||
Domed seal | Ra≤0.6 | μm | |
Cylinder | Ra≤0.6 | μm | |
Welding joint | Ra≤0.6 | μm | |
Cone bottom | Ra≤0.6 | μm | |
Thickness | 4 | mm | |
Cone thickness | 4 | mm | |
Tank outer cladding | |||
Material | AISI 304/304L | ||
Thickness | 2 | mm | |
Cone thickness | 3 | mm | |
Cooling jacket | |||
Type | Dimple jacket | ||
Quantity | 4 | PC | |
Cylinder jacket | 3 | PC | |
Conical jacket | 1 | PC | |
Working pressure | 2 | bar | |
Test pressure | 3 | bar | |
Insulation | |||
Insulation | Polyurethane | ||
Density | ≥40 | kg/m³ | |
Thickness | 100 | mm | |
Support legs | |||
Quantity | 4 | Pc | |
Material | AISI304 | ||
Diameter | 159 | mm | |
Thickness | 4 | mm | |
Adjustable leg plates | 4 | sets | |
Material | AISI304 | ||
Diameter | 200 | mm | |
Thickness | 5 | mm | |
Screw length | 150 | mm | |
Fittings | |||
1× | PVRV | DN50 | - Wenhan |
1× | Sample valve | DN15, butterfly valve | - Wenhan |
1× | CIP arm | DN32/38mm | |
1× | Bunging valve | Pressure: 0.11-0.32 Mpa Connection: DN32, Crew | - Wenhan |
1× | Pressure gauge | DN32/38mm Diaphragm type Diameter: 60mm Range: 0-4/0-6bar Shake proof | |
2× | Temp sensor | PT100 Length: 20cm Connection: M8 | - PT100 |
4× | Butterfly valve | 2×CIP arm , DN32 1× Drain outlet ,DN50 1× beer out | |
2× | Glycol inlet/outlet | DN32, TC Glycol in: 2 pcs Glycol outlet: 2 pcs | |
2× | Solenoid valve | DN25, TC For glycol cooling control | |
1× | Manway | Top manway: DN450 Flange connection 6-8 pcs screw for tank sealing | |
2× | Ladder holder | AISI stainless steel | |
1× | Dry hopping port | 4 inch, TC/screw connection | |
1× | Racking arm | DN50 Screw connection with tank | |
1× | Carbonation unit | DN25 | |

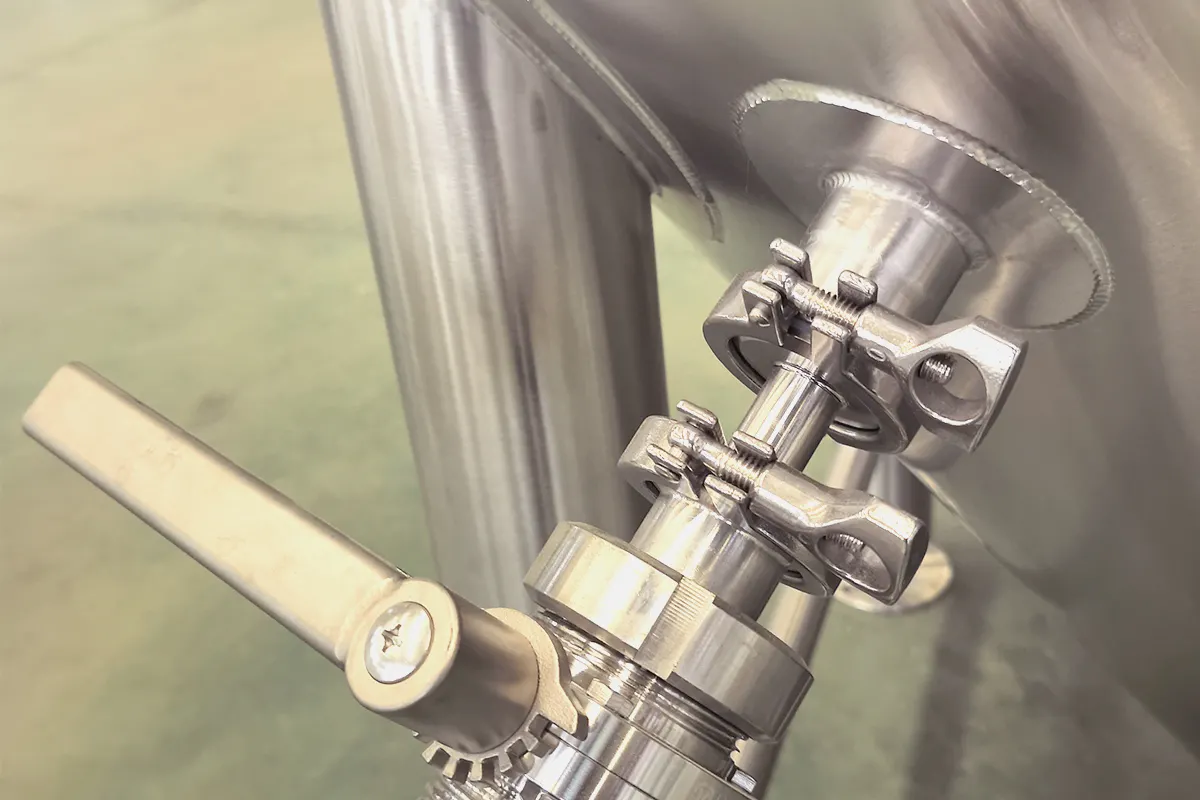

Bottom cone device with flange connection
Bunging device of Kieselmann
World famous brand on valves&sampe valves
PED certificate for EU
Drying hopping port
Hops doser for top dry hopping under pressure.
Hop gun/canon for more hoppy beer brewing
Connection: TC/DIN Thread/flange etc
