Beer Transport Tank & Event tank
Effective Volume: 5HL/10HL/20HL
Function: For beer transportation to other restaurant/bars etc
Horizontal type
With special unit for lifting&moving of forklift
Inside passivated or mirror polished
With or without inliner bag
Tank Design Pressure: 2 Bar
Tank Test Pressure: 3 Bar
Design Temp: -5~40℃

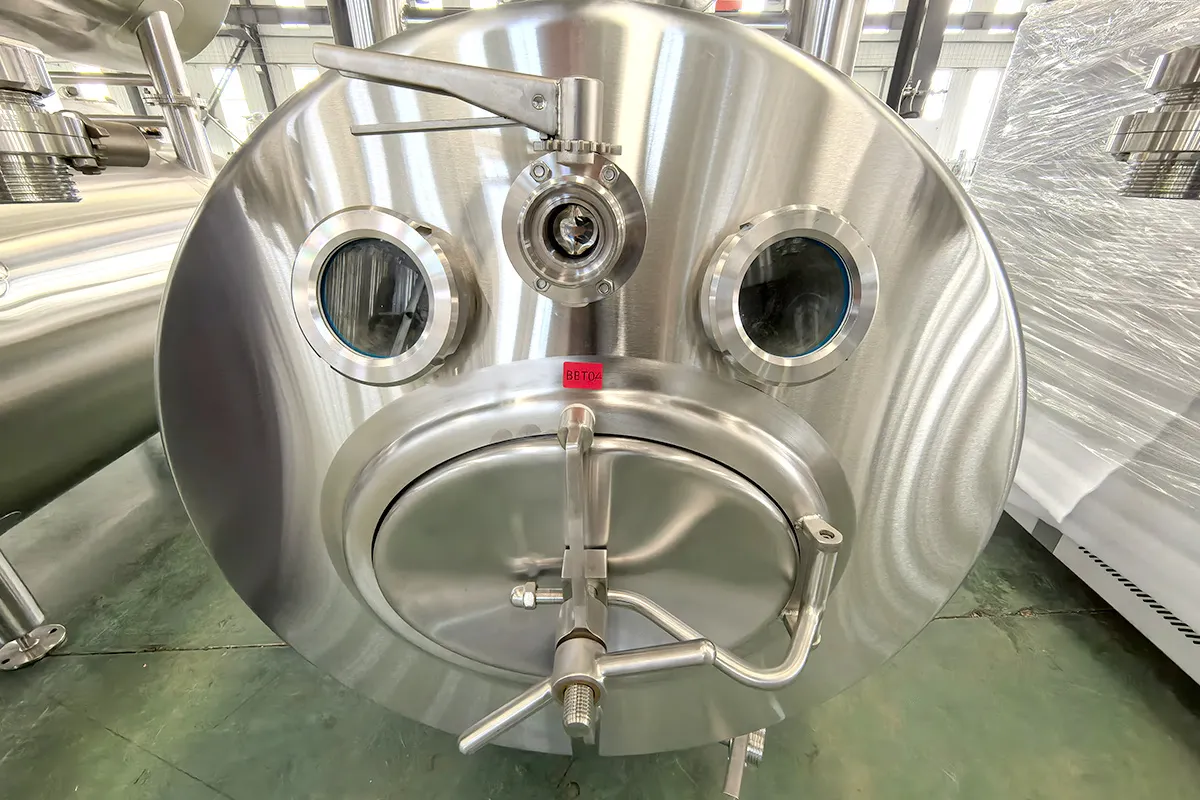

With side manway

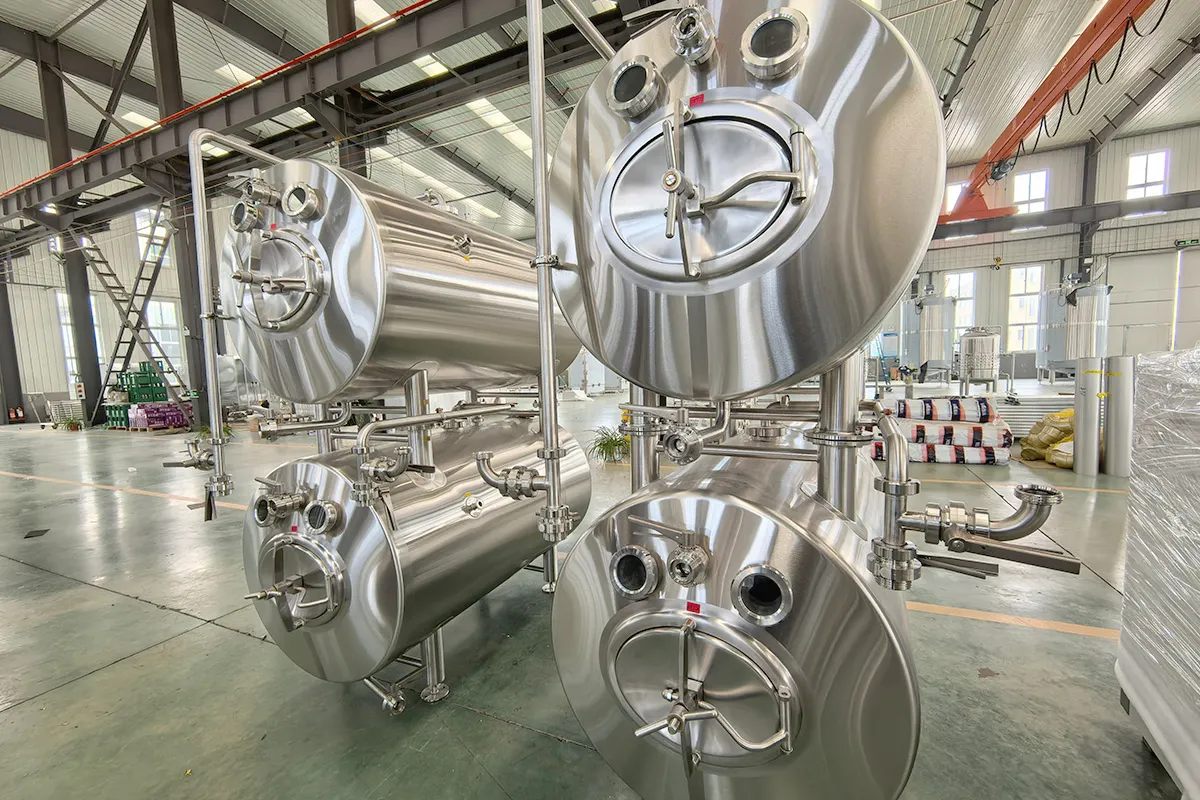

The type of tank is typically designed for the use of beer transportation from brewery to other chain store like restaurants or bars etc, which is easy to be intalled on truck or in a trailer.

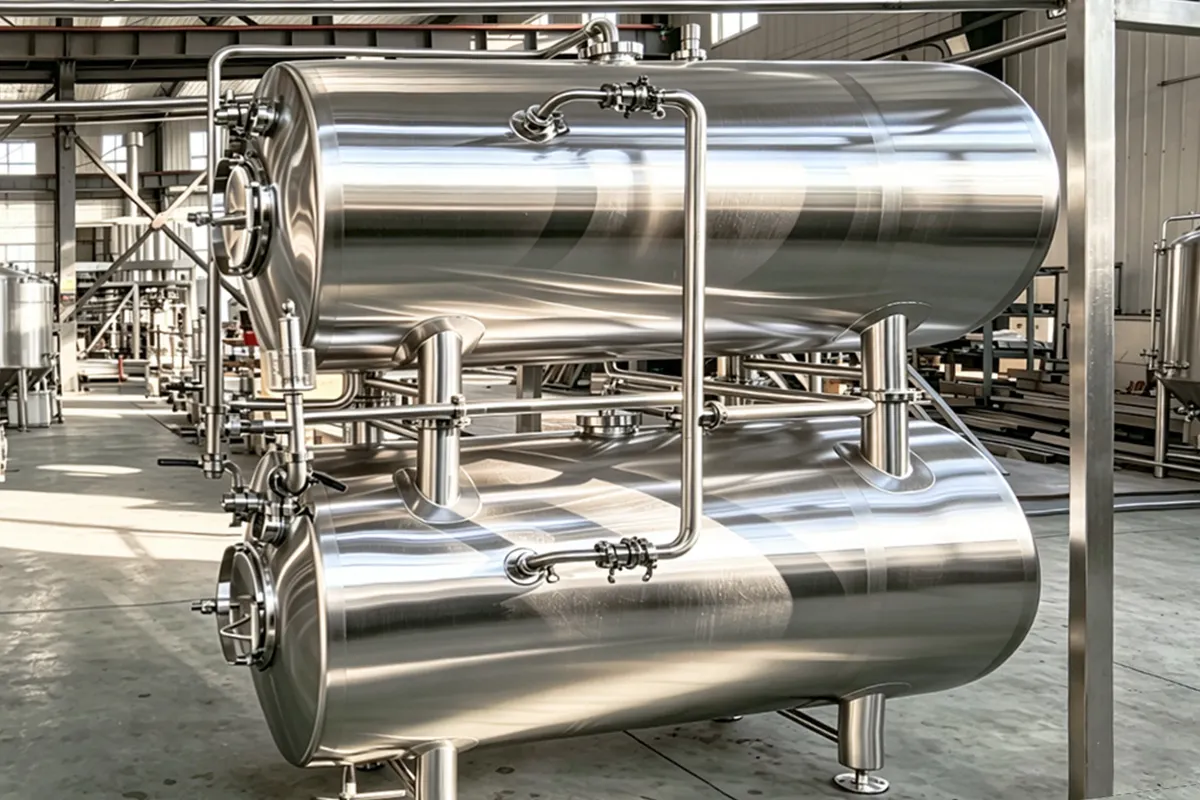

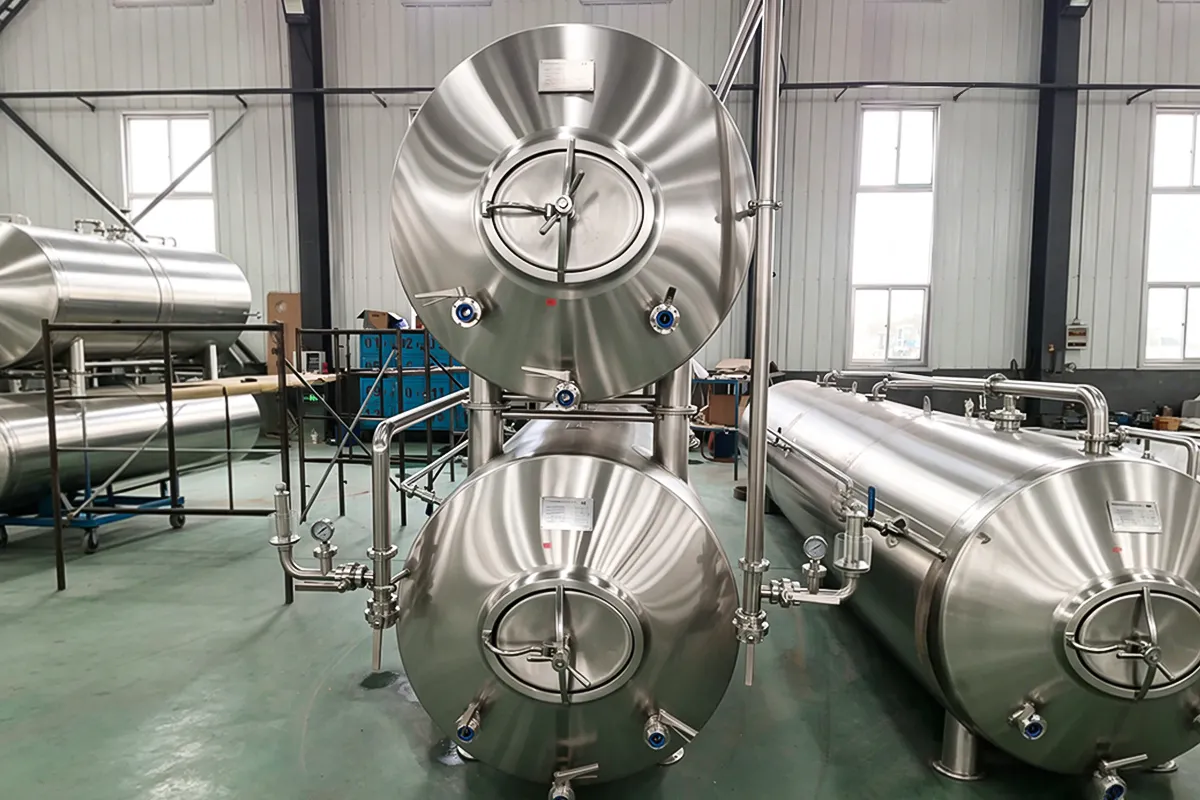

For space saving, there is also the extra function being stacked but can be easily switched when there is need for the right tanks filling/emptying.
It can be used for either with or without bags, with combined beer inlet/outlet and connected with hose and extend to the bar system or fixed horizontal tanks .
All tanks are made by SUS304/304L, with good surface treatment, the cooling area is reasonable for precise temp maintaining, which makes the beer lagering temp under stable control.
The tanks volume is customized as the facility or transport request.
A plastic bags can be used with such tanks to bring the end user more flexibility in the beer storage or transport.
For beer transportation, it is easy for using forklift to remove and configured with portable air compressor and chiller, which comes out the function of event tanks
A single layer tank is also possible to customize if it is supposed to be installed in cold room.
Customization as different transport request
Easy connection&combination with exist system.
Flexibility on using with and without bags
Stacked solution, easy to switch
More space for further modification
1X | Beer transport tank Event tank | ZYB Craft | |
Basic tank specification | |||
Type | Horizontal | ||
Medium | Beer | ||
Two ends | Domed seal | ||
Material | AISI304/304L | ||
Effective volume | 300-1000 | L | |
Diameter(ID) | Customization | mm | |
Diameter (OD) | Customization | mm | |
Height | / | mm | |
Cooling area | / | M2 | |
Tank design pressure | 2 | BAR | |
Test pressure | 3 | BAR | |
Design temp | -5~40 | °C | |
Tank Inside | |||
Material | AISI 304 | ||
Domed seal | Ra≤0.6 | μm | |
Cylinder | Ra≤0.6 | μm | |
Welding joint | Ra≤0.6 | μm | |
Cone bottom | Ra≤0.6 | μm | |
Thickness | 3 | mm | |
Cone thickness | 4 | mm | |
Tank outer cladding | |||
Material | AISI 304 | ||
Thickness | 2 | mm | |
Cooling jacket | |||
Jacket type | Dimple jacket | ||
Quantity | 1 | PC | |
Jacket position | Cylinder | ||
Cylinder jacket | 1 | PC | |
Working pressure | 2 | bar | |
Test pressure | 3 | bar | |
Insulation | |||
Insulation | Polyurethane | ||
Density | ≥40 | kg/m³ | |
Thickness | 60-80 | mm | |
Support legs | |||
Quantity | 4 | Pc | |
Material | AISI304 | ||
Diameter | 89 | mm | |
Thickness | 3 | mm | |
Adjustable leg plates | 4 | sets | |
Material | AISI304 | ||
Diameter | 102 | mm | |
Thickness | 4 | mm | |
Screw length | 120 | mm | |
Fittings | |||
1× | PVRV | DN50, TC connect | - Wenhan |
1× | Bunging device | DN25 Pressure regulation Venting port | |
1× | CIP arm (For use without bag) | DN32 | |
1× | Spray ball (For use without bag) | DN25 Rotating type | -LYSF |
1× | Pressure gauge | DN32, Diaphragm type Diameter: 60mm Range: 0-4/0-6bar | |
1× | Temp sensor | PT100 Mounting inside insulation | |
2× | Butterfly valve | 1×CIP arm, DN25 1×beer inlet/outlet | |
2× | Glycol inlet/outlet | DN32, TC Glycol in: 1 pc Glycol outlet: 1 pc | |
1× | Manway | Side manway Internal manhole |
Customization of single layer
Stacked solution, easy to switch
Function of using plastic bag
Multi function of: Beer transport tank, inliner tank, beer transport tank
Easy connection to filling parts with extended hard piping
Connection: TC/DIN Thread/flange etc
