Horizontal Lagering Tanks
Effective Volume: 5HL-100HL
Function: For beer largering
Horizontal type, stacked
Support legs, with saddle support or extra support legs
Tank Design Pressure: 2 Bar
Tank Test Pressure: 3 Bar
Design Temp: -5~40℃
With side manway, beer outlet etc.
The horizontal tank is used at the stage after main fermentation process for lagering. After the main fermentation process, the beer being transferred to the horizontal tanks.

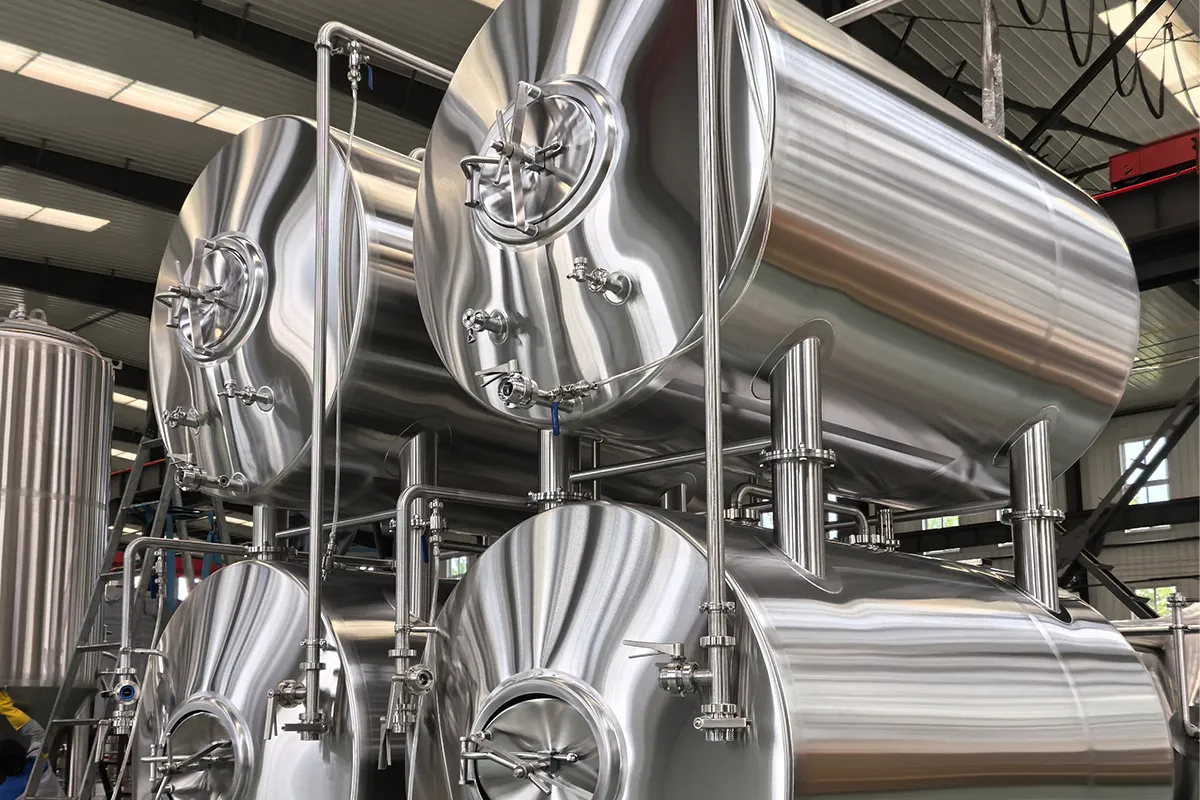

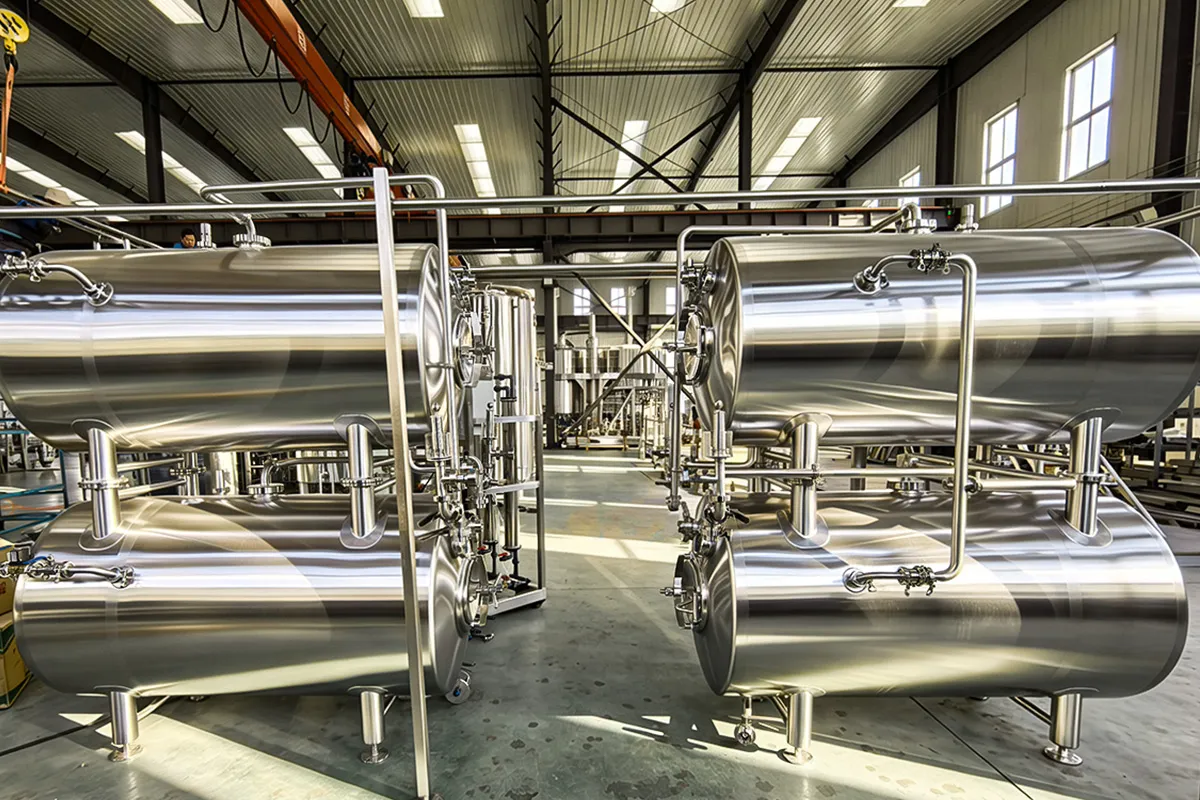

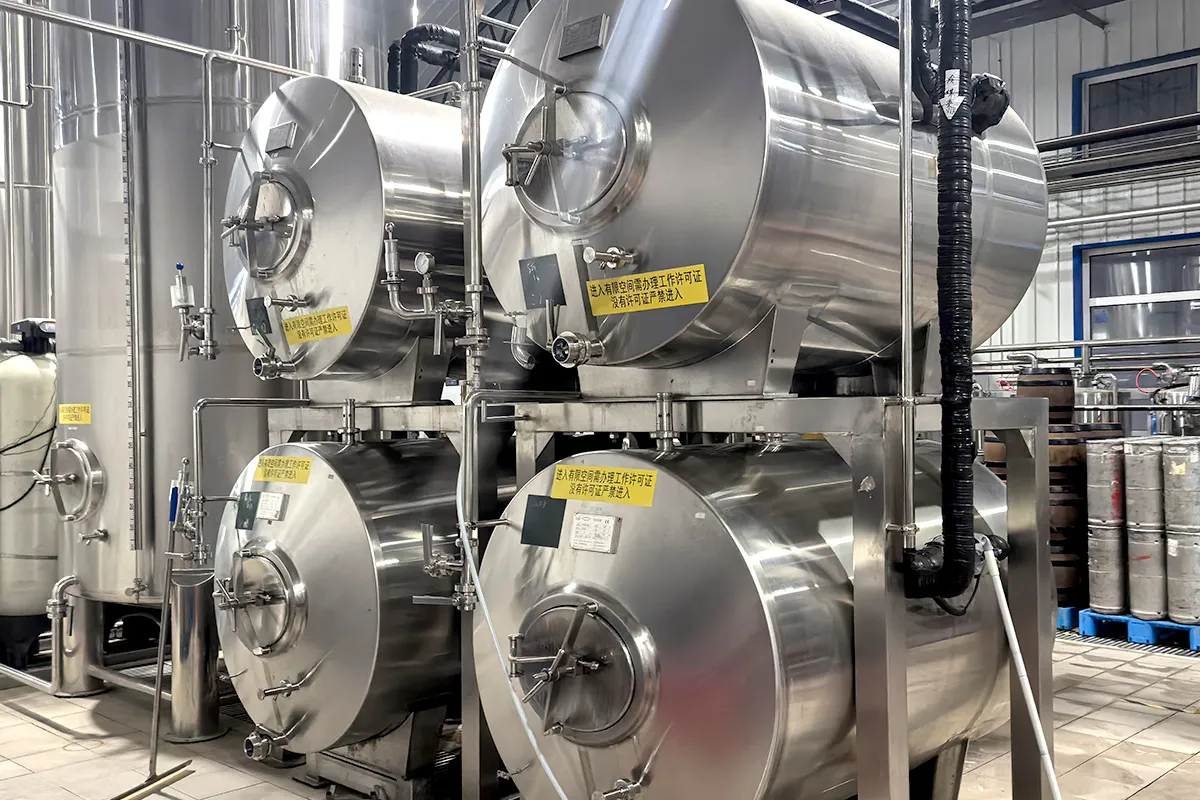

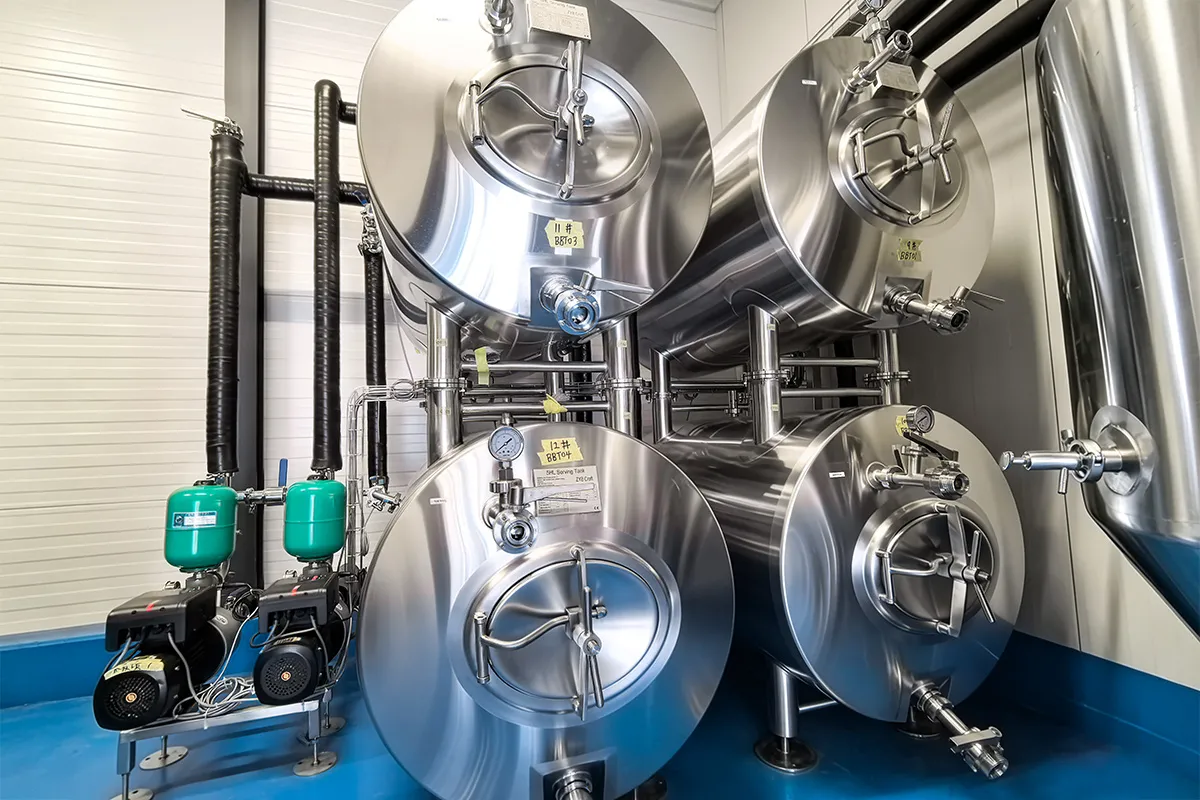

The tanks are mostly horizontal and stacked for space saving, it is insulated, jacketed and combined with glycol loop.
All tanks are made by SUS304/304L, with good surface treatment, the cooling area is reasonable for precise temp maintaining, which makes the beer lagering temp under stable control.
The tanks volume is customized as the facility size and height request,with flexible length and height design. The tank is also possible to use plastic bag for beer storage under slight design modification.
It can be also used for beer transportation with optional function of using forklift to remove and configured with portable air compressor and chiller, which comes out the function of event tanks
A single layer tank is also possible to customize if it is supposed to be installed in cold room.
Flexible customization as the facility request on volume and dimension
Easy operation
With full spares for long time operation
Perfect inside surface treatment for good cleaning guarantee
Reasonable heads space for multi function, and being used as others below:
Lagering tank in cellar
Inliner tank
Beer transportation tank
1X | Lagering tank | ZYB Craft | |
Basic tank specification | |||
Type | Horizontal, stacked Based on exact quantity | ||
Medium | Beer | ||
Two ends | Domed seal | ||
Material | AISI304/304L | ||
Effective volume | 10-100 | HL | |
Diameter(ID) | Customization | mm | |
Diameter (OD) | Customization | mm | |
Height | / | mm | |
Cooling area | / | M2 | |
Tank design pressure | 3-4 | BAR | |
Test pressure | 4 | BAR | |
Design temp | -5~40 | °C | |
Tank Inside | |||
Material | AISI 304 | ||
Domed seal | Ra≤0.6 | μm | |
Cylinder | Ra≤0.6 | μm | |
Welding joint | Ra≤0.6 | μm | |
Cone bottom | Ra≤0.6 | μm | |
Thickness | 3-4 | mm | |
Cone thickness | 4 | mm | |
Tank outer cladding | |||
Material | AISI 304 | ||
Thickness | 2 | mm | |
Cooling jacket | |||
Jacket type | Dimple jacket | ||
Quantity | 1-2 | PC | |
Jacket position | Cylinder | ||
Cylinder jacket | 2 | PC | |
Working pressure | 2 | bar | |
Test pressure | 3 | bar | |
Insulation | |||
Insulation | Polyurethane | ||
Density | ≥40 | kg/m³ | |
Thickness | 80 | mm | |
Support legs | For lower part tank | ||
Quantity | 4 | Pc | |
Material | AISI304 | ||
Diameter | 102/133 | mm | |
Thickness | 3 | mm | |
Adjustable leg plates | 4 | sets | |
Material | AISI304 | ||
Diameter | 159 | mm | |
Thickness | 5 | mm | |
Screw length | 150 | mm | |
Fittings | |||
1× | PVRV | DN50, TC connect | - Wenhan |
1× | Sample valve | DN25 | - Wenhan |
1× | CIP arm | DN32 | |
2× | Spray ball | DN25 Rotating type | -LYSF |
1× | Pressure gauge | DN32, Diaphragm type Diameter: 60mm Range: 0-4/0-6bar | |
1× | Temp sensor | PT100 Length: 20cm Connection: M8 | - PT100 |
3× | Butterfly valve | 2×CIP arm , DN32 1×beer out | |
2× | Glycol inlet/outlet | DN32, TC Glycol in: 1 pc Glycol outlet: 1 pc | |
1× | Solenoid valve | DN25, TC For glycol cooling control | |
1× | Manway | Side manway Size: 580*480mm Internal manhole | |
Optional items | |||
1× | Carbonation unit | DN25 |
Insulated&jacketed
Customization of single layer
Two pieces stacked
Three pieces stacked
Combined inlet/outlet or single outlet
Multi function of: Beer transport tank, inliner tank, beer transport tank
Easy connection to filling parts with extended hard piping
Connection: TC/DIN Thread/flange etc
